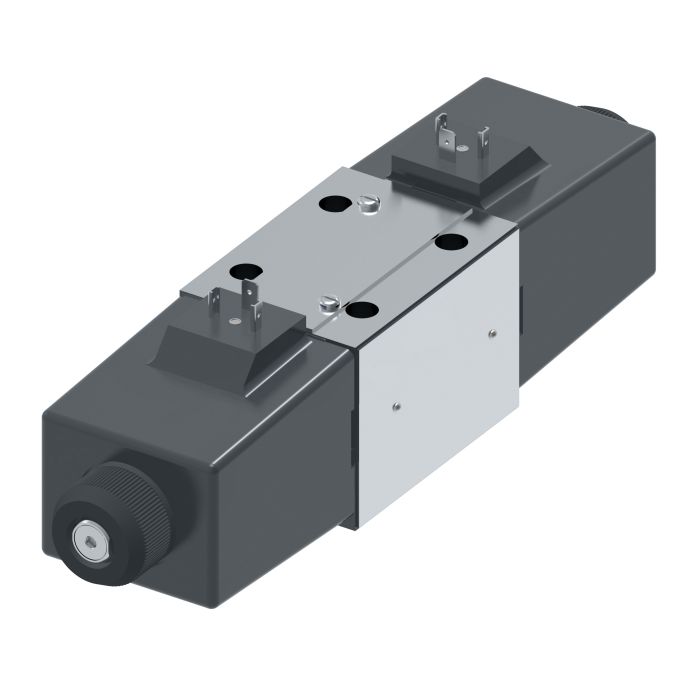

VICKERS-F6-DG4V4-016C-M-U-B-5-10

Ask A Question

Description & Features

Designed for three- or four-way directional control in demanding industrial hydraulic circuits, the Vickers F6-DG4V4-016C-M-U-B-5-10 is a single-stage directional control valve from the Danfoss/Eaton Vickers DG4V4-01 series. It supports flow rates up to 115 litres per minute and operates with a 30-watt solenoid, with Buna-N seals suited to a broad range of hydraulic fluids.

Mounting follows industry-standard surface configurations, simplifying integration into existing hydraulic systems. Suitable applications span die casting and foundry equipment, machine tools, marine and offshore installations, press machinery, primary metal and paper processing, test and simulation equipment, and turbine control systems, including wind, steam, and water turbine applications. The DG4V4-01 series offers a wide model range, providing configuration flexibility across a variety of circuit requirements.

SKU: 02-362530

Supplier Part Number (MPN): 02-362530

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Design
10 Series
Dimensions
9.38 in L x 2.84 in W x 4.31 in H
Domestic/Import
Domestic
Indicator Light
Without Indicator Light
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
1
Performance
Standard
Seal Material
Water Glycol
Segment Code
B
Series
DG4V4-01 10 Series
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 6
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Question by: Kurt K on Oct 27, 2025, 3:31 PM
Flow rate on this one says 115 litres per minute, that handle three-way circuit setups or just four-way?
Answer by: Customer Support on Oct 29, 2025, 11:10 AM
Both three-way and four-way directional control are supported by this valve, so you're not locked into one configuration. That flexibility is built into the DG4V4-01 series design, which is part of why it shows up across such a wide range of industrial applications, from press machinery to turbine control systems. Whatever your circuit calls for, this model covers both switching arrangements.
Question by: Lynn S on Jul 23, 2025, 12:19 PM
Reckon this'll work alright in a die casting machine?
Answer by: Customer Support on Jul 25, 2025, 9:01 AM
This Vickers directional control valve is definitely suitable for die casting and foundry equipment, along with machine tools and presses.
