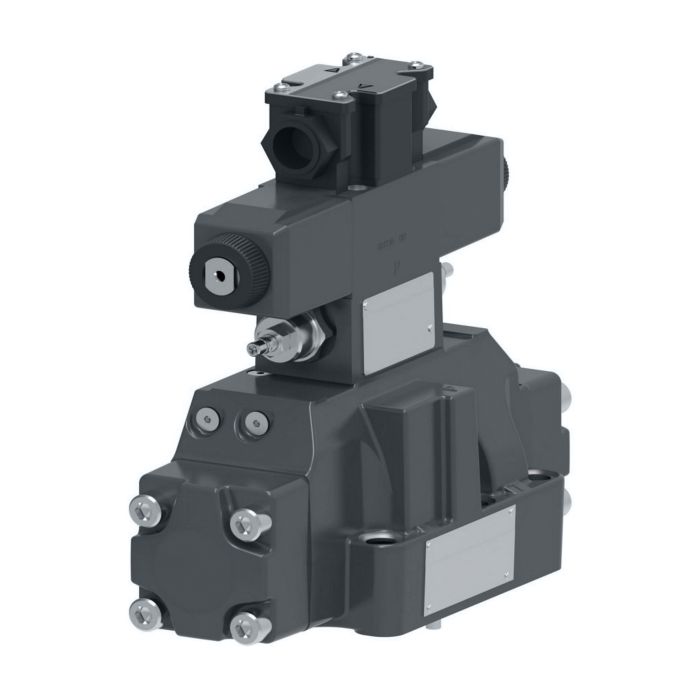

VICKERS DG5V8H8C2RVMFWB10

Ask A Question

Description & Features

Engineered for versatility and reliability, the Vickers DG5V8H8C2RVMFWB10 is a high-performance directional control valve suited for demanding applications such as die casting, machine tools, marine use, and turbine control. It offers three- or four-way directional control and mounts easily on industry-standard surfaces, ensuring seamless integration into existing systems. With a robust flow rate of 700 liters per minute, this valve is designed to handle significant hydraulic demands efficiently.

Constructed with durable Buna-N seal material, the Vickers DG5V8H8C2RVMFWB10 provides long-lasting service life in challenging environments. Its adaptability is highlighted by thousands of models available to suit diverse applications, from primary metal processing to test equipment and simulation. Trust in the Vickers brand to deliver consistent and precise hydraulic control.

SKU: 02-362563

Supplier Part Number (MPN): 02-362563

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid, Pilot Operated
Design
10 Series
Dimensions
10.45 in L x 4.67 in W x 9.51 in H
Domestic/Import
Domestic
Electrical Connection
1/2 in NPT Housing Flying Leads
Ext Pilot Pressure
Internal
Gauge Port Thread
7/16-20 UNF, SAE Thread
Indicator Light
Without Indicator Light
Int Pilot Drain
External
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
2
Performance
High
Seal Material
Buna-N
Series
DG5V-8 10 Series
Solenoid Energizing ID
Solenoid A at Port A/Solenoid B at Port B
Spool Control
Pilot Choke Adjustment
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 8
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (1)

Question by: Duane B on Nov 21, 2025, 8:06 AM
Flow rate on this one says 700 liters per minute, is that enough to run a die casting setup without choking the system?
Answer by: Customer Support on Nov 23, 2025, 7:52 AM
For die casting applications, 700 liters per minute is a substantial flow capacity and one of the reasons this valve gets spec'd into those environments. Die casting systems push high volumes of fluid fast, and this valve is built with that kind of demand in mind. As long as your system's pump and line sizing are matched to that flow range, you shouldn't run into restriction issues on the valve side.
