DG5V-8-H-6C-E-M-U-H-10

Description & Features

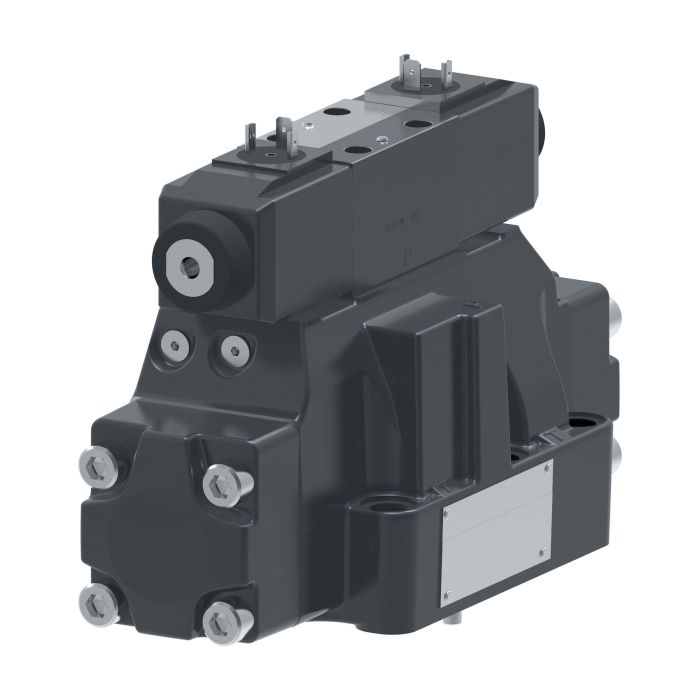

This Vickers by Danfoss DG5V-8-H-6C-E-M-U-H-10 directional control valve is suited for die casting and foundry applications, as well as for machine tools, marine and offshore use, presses, primary metal, paper, test equipment, simulation, and turbine control (wind, steam, and water).

This three- or four-way directional control valve is easily mountable on industry-standard surfaces and offers thousands of models to suit all applications. It features a 700 litre per minute flow rate, a 30 wattage, and utilizes Buna-N seals. It has a product width of 4.67.

SKU: 02-363986

Supplier Part Number (MPN): 02-363986

Specifications

Actuator Type Pilot Operated, Solenoid	Body Material Iron	Design 10 Series	Dimensions 10.45 in L x 4.67 in W x 7.79 in H	Domestic/Import Domestic	Electrical Connection ISO 4400 (DIN 43650) Connector	Enclosure Type IP65, NEMA 4	Ext Pilot Pressure External	Gauge Port Thread 7/16-20 UNF, SAE Thread	Indicator Light Without Indicator Light	Int Pilot Drain External	Language English	Manual Override Plain	Media Petroleum Oil	Nominal Size #08	Number of Ports/Ways 4-Port	Number of Stages 2	Performance High-Performance	Port Type SAE	Seal Material Buna-N	Series DG5V-8 10 Series	Softgoods Material Nitrile	Spool Position Monitor Without Spool Position Monitor	Spool Type Spool 6	Spring Arrangement Spring Centered	Surge Suppressor Damper Without Surge Suppressor Damper	Valve Mount Type Subplate/Manifold

Product Questions & Answers (2)

Question by: Denise C on Jan 31, 2026, 9:39 PM

we run a pretty heavy press operation and been looking at directional control valves that can actually keep up with the flow demands, does this one handle high volume work or is it more of a lighter duty unit?

Answer by: Customer Support on Feb 2, 2026, 12:33 PM

At 700 litres per minute, this valve is built for serious flow demands. Press applications are actually one of the listed uses, so it lines up well with that kind of work. If your operation is pushing high volumes, this is not a light-duty piece of equipment.

Question by: Hank M on Sep 5, 2025, 3:55 PM

Reckon this'll work okay for a machine tool application?

Answer by: Customer Support on Sep 7, 2025, 6:19 AM

This directional control valve is indeed well-suited for machine tool applications, along with die casting, marine/offshore, presses, and more.
