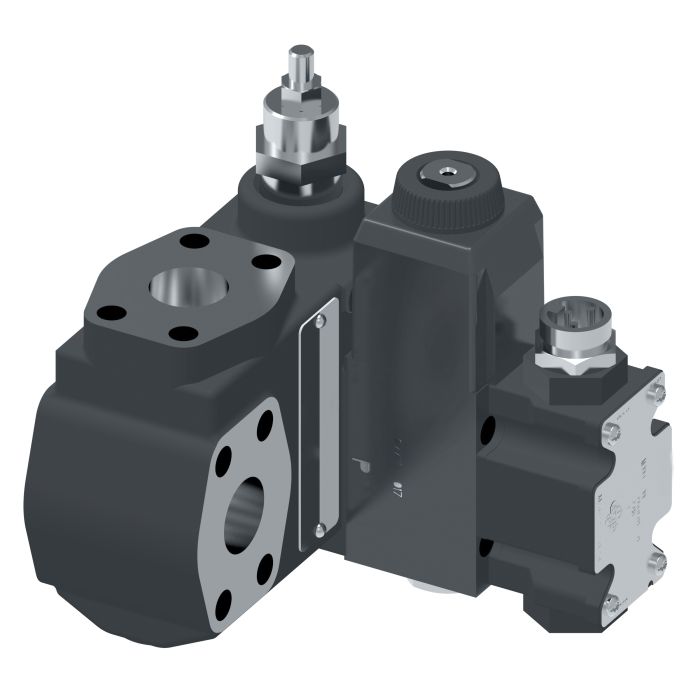

main product photo

VICKERS-CPF2S-06-A-W-3S-VM-FPA3WL-B5-20

Ask A Question

Description & Features

Designed for hydraulic circuits that require precise pressure management, this Vickers pressure control valve provides adjustable relief and regulating functionality to limit system pressure to a defined maximum. The VICKERS-CPF2S-06-A-W-3S-VM-FPA3WL-B5-20 supports a flow rate of 100 litres per minute and is rated at 30 watts, making it well-suited for medium-duty industrial hydraulic applications.

Construction includes Buna-N seals for reliable fluid compatibility, and the valve's moisture-resistant design supports reliable performance in demanding environments. The plug-and-play configuration simplifies installation and integration into existing hydraulic circuits without extensive modification.

SKU: 02-364713

Supplier Part Number (MPN): 02-364713

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Adjustment Type
Screw with Locknut
Body Material
Iron
Connection Type
SAE
Design
20 Series
Dimensions
5.5 in L x 2.5 in W x 7.09 in H
Domestic/Import
Domestic
Drain
Internal
Electrical Connection
3-Pin Connector
End Type
SAE
Gauge Port Thread
1/4 in BSP
Hi-Vent Spring
Without Hi-Vent Spring
Indicator Light
With Indicator Light
Manual Override
Plain
Media
Petroleum Oil
Nominal Size
3/4 in
Number of Stages
2
Performance
Standard
Seal Material
Buna-N
Series
CPF2S-06 Series
Valve Mount Type
Flange-Mounted
Voltage Rating
110 VAC at 50 Hz, 120 VAC at 60 Hz

Product Questions & Answers (1)

Question by: Ronnie L on Jan 16, 2026, 9:15 AM
Flow rate on this one is listed at 100 litres per minute, is that enough for a medium-duty hydraulic setup, or would you need something bigger for heavier continuous loads?
Answer by: Customer Support on Jan 18, 2026, 6:18 AM
For medium-duty industrial hydraulic circuits, 100 litres per minute is a solid match. Where it fits well is in systems that need steady, controlled pressure relief without pushing into heavy industrial territory. The 30-watt power rating lines up with that same range, so if your application sits in that middle ground, this valve handles it without being undersized.
