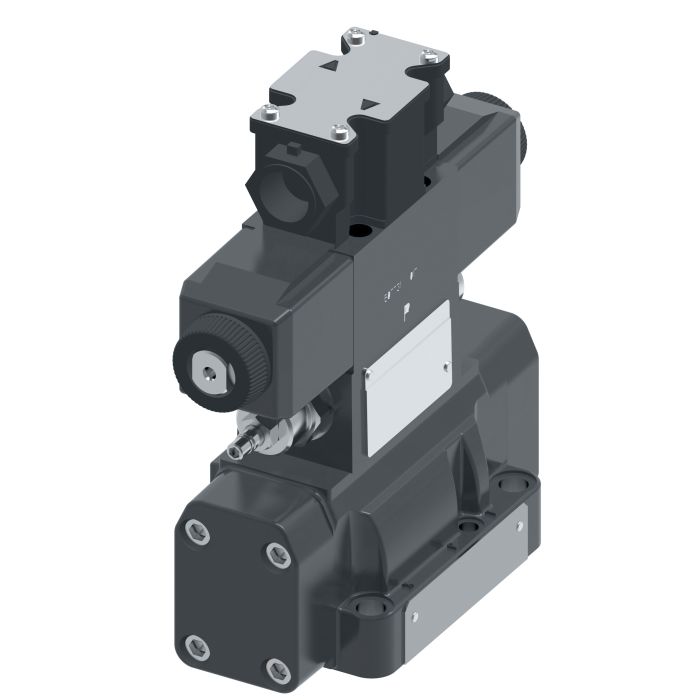

VICKERS DG5S4026C27TMFWB520

Ask A Question

Description & Features

The Vickers DG5S4026C27TMFWB520 is a two-stage directional control valve suitable for applications such as die casting, foundry work, machine tools, marine and offshore equipment, presses, and primary metal processing.

This Vickers sub-brand valve is easily mounted on industry-standard surfaces and provides three- or four-way directional control. It features a 115 litre per minute flow rate and a 30-watt power rating. This directional control valve utilizes Buna-N seals and has a product width of 2.63 inches.

SKU: 02-364739

Supplier Part Number (MPN): 02-364739

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid, Pilot Operated
Design
20 Series
Dimensions
7.87 in L x 2.63 in W x 8.09 in H
Domestic/Import
Domestic
Electrical Connection
1/2 in NPT Housing Flying Leads
Ext Pilot Pressure
Internal
Indicator Light
Without Indicator Light
Int Pilot Drain
Internal
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
2
Performance
Standard
Seal Material
Buna-N
Series
DG5S4-02 20 Series
Spool Control
Pilot Choke/Stroke Adjustment A End
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 6
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Question by: Terry W on Apr 22, 2025, 1:18 PM
Flow rate on this thing is listed at 115 liters per minute, that enough to keep up with a die casting setup running pretty hard?
Answer by: Customer Support on Apr 24, 2025, 7:16 AM
For die casting, that flow rate holds up well. The DG5S4026C27TMFWB520 is rated at 115 litres per minute, which covers the kind of sustained demand those machines put on a directional valve. It's also listed specifically for die casting and foundry work, so it's not just a general-purpose fit, that application is one it was built around.
Question by: Lyle T on Apr 12, 2025, 6:49 AM
How wide is this valve? Just tryin' to figure out if it'll fit where I need it.
Answer by: Customer Support on Apr 14, 2025, 6:27 AM
The Vickers DG5S4026C27TMFWB520 has a width of 2.63 inches. Make sure to account for any fittings or connections you might need.
