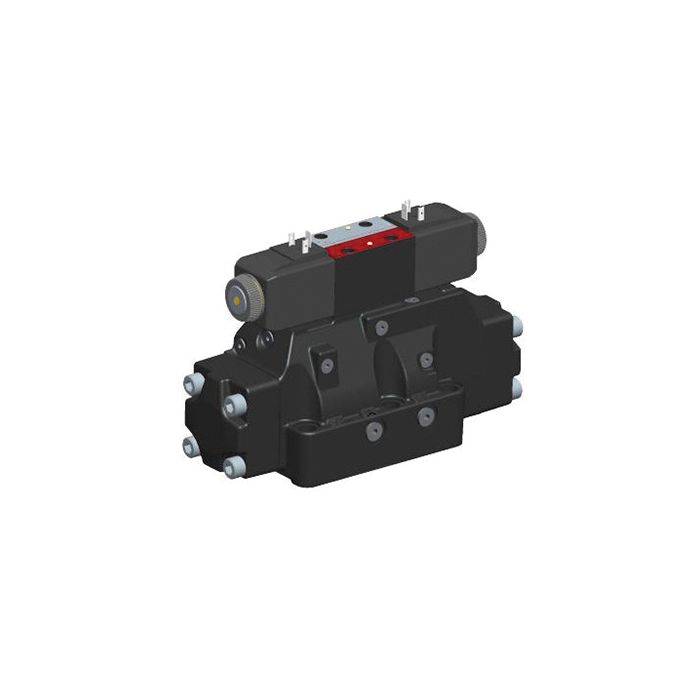

main product photo

VICKERS DG5V8H4CRVMFWB10

Ask A Question

Description & Features

The Vickers DG5V8H4CRVMFWB10 is a two-stage directional control valve suitable for applications such as die casting, foundry work, machine tools, marine and offshore environments, presses, primary metal processing, paper production, test equipment, simulation, and turbine control (wind, steam, water).

This Vickers sub-brand valve offers three- or four-way directional control. It features a 700 litre per minute flow rate and easily mounts on industry-standard surfaces. The seal material is Buna-N. It measures 4.67 inches in width.

SKU: 02-390226

Supplier Part Number (MPN): 02-390226

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid, Pilot Operated
Design
10 Series
Dimensions
10.45 in L x 4.67 in W x 7.94 in H
Domestic/Import
Domestic
Electrical Connection
1/2 in NPT Housing Flying Leads
Ext Pilot Pressure
Internal
Gauge Port Thread
7/16-20 UNF, SAE Thread
Indicator Light
Without Indicator Light
Int Pilot Drain
External
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
2
Performance
High
Seal Material
Buna-N
Series
DG5V-8 10 Series
Solenoid Energizing ID
Solenoid A at Port A/Solenoid B at Port B
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 4
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Question by: Rusty M on Jun 6, 2025, 1:14 PM
Can this handle the constant start and stop on a big metal press without wearing out too quick?
Answer by: Customer Support on Jun 8, 2025, 6:47 AM
Application in presses is definitely supported. This Vickers valve is made with a Buna-N seal material, which offers good abrasion resistance in hydraulic applications involving constant cycling.
Question by: Kirk D on Sep 19, 2025, 7:45 PM
Flow rate on this one says 700 litres per minute, is that gonna hold up for press and die casting work, or is that more of a ceiling you don't want to push?
Answer by: Customer Support on Sep 21, 2025, 6:37 PM
For press and die casting applications, 700 litres per minute is a solid working capacity. That figure represents the rated flow rate for this valve, so it's built to handle the demands those environments put on a directional control system. Die casting and press use were specifically called out as intended applications, so you're not working against the grain of what this valve was made for.
