VICKERS DG5V 8 H 2C 2 M U H 10

Ask A Question

Description & Features

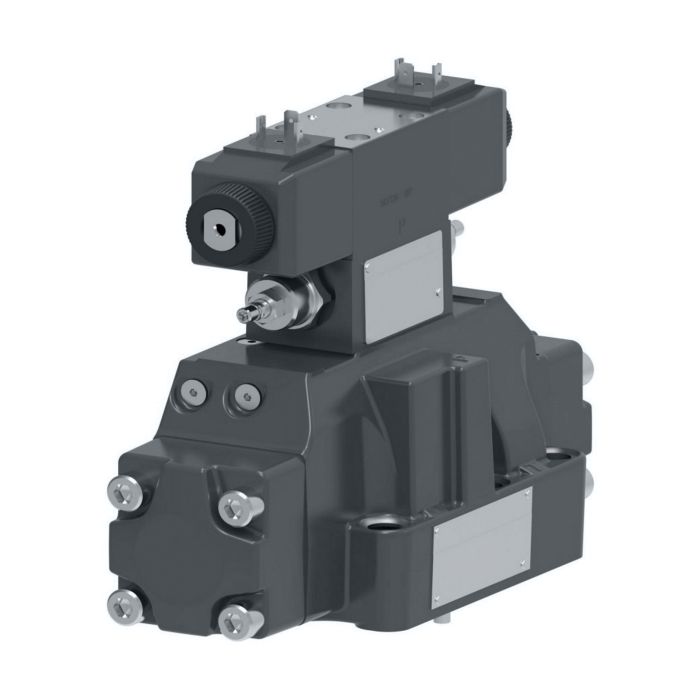

The VICKERS DG5V 8 H 2C 2 M U H 10 is a two-stage directional control valve designed for a range of demanding applications.

This Vickers valve is suitable for use in die casting and foundry use, machine tools, marine and offshore environments, presses, primary metal processing, paper mills, test equipment and simulation setups, and turbine control systems (wind, steam, and water). It offers three- or four-way directional control and is easily mounted on industry-standard surfaces. The valve uses Buna-N seals and has a flow rate of 700 liters per minute, with a wattage of 30. The product width is 4.67 inches.

SKU: 02-390557

Supplier Part Number (MPN): 02-390557

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid, Pilot Operated
Design
10 Series
Dimensions
10.45 in L x 4.67 in W x 9.36 in H
Domestic/Import
Domestic
Ext Pilot Pressure
Internal
Gauge Port Thread
7/16-20 UNF, SAE Thread
Indicator Light
Without Indicator Light
Int Pilot Drain
External
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
2
Performance
High
Seal Material
Buna-N
Segment Code
C
Series
DG5V-8 10 Series
Spool Control
Pilot Choke Adjustment
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 2
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (1)

Question by: Gary M on Apr 27, 2025, 9:08 AM
flow rate on this thing is listed at 700 liters per minute, is that enough for a press or primary metal setup runnin heavy cycles?
Answer by: Customer Support on Apr 28, 2025, 9:03 PM
For press and primary metal processing work, 700 liters per minute puts this valve in solid territory. Those applications can demand high flow capacity, and this unit was built with exactly that kind of industrial environment in mind. It also covers die casting, foundry use, and turbine control systems, so the flow spec reflects real heavy-duty expectations rather than light-duty ratings dressed up to look bigger.
