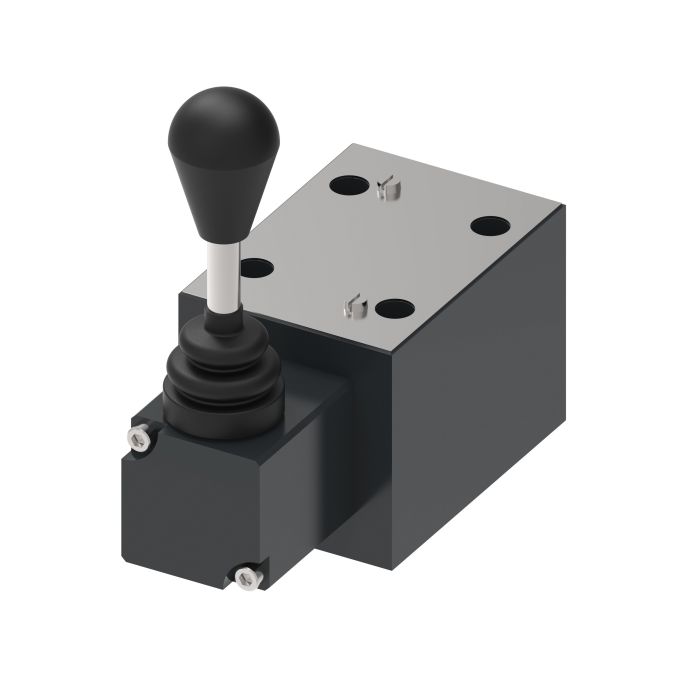

main product photo

DG17V4-012N-H-10

Ask A Question

Description & Features

Designed for demanding industrial environments, the DG17V4-012N-H-10 is a single-stage directional control valve from Vickers by Danfoss Power Solutions, offering three- or four-way directional control with a flow capacity of 114 litres per minute. Buna-N seals provide reliable fluid compatibility across a broad range of hydraulic media.

Mounting follows industry-standard surface patterns, making integration straightforward across new and existing installations. This valve is well-suited to a wide range of applications including machine tool, press, primary metal processing, die casting and foundry, marine and offshore, test equipment and simulation, and turbine control systems covering wind, steam, and water variants. The DG17V4 series offers broad model availability to match specific circuit and performance requirements across these sectors.

SKU: 02-390704

Supplier Part Number (MPN): 02-390704

Specifications

Brand
Vickers by Danfoss
Actuator Type
Manual
Body Material
Iron
Connection Type
SAE
Connector Type
ISO 4401-05 Plug
Dimensions
8.82 in L x 2.75 in W x 6.42 in H
Installation Type
Subplate/Manifold
Media
Petroleum Oil
Number of Handles
1
Number of Ports/Ways
4
Number of Positions
3
Number of Stages
1
Performance
Standard
Seal Material
Buna-N
Series
DG17V Series

Product Questions & Answers (2)

Question by: Ray C on Dec 4, 2025, 5:58 PM
Will this directional control valve work okay for controlling a hydraulic press?
Answer by: Customer Support on Dec 6, 2025, 10:27 AM
This DG17V4-012N-H-10 directional control valve is indeed well-suited for hydraulic press applications, as well as primary metal processing, die casting, and foundry work.
Question by: Shane J on Dec 25, 2025, 12:00 PM
Flow capacity on this one is listed at 114 litres per minute, is that enough to handle press or primary metal applications without choking the circuit?
Answer by: Customer Support on Dec 26, 2025, 12:45 PM
For most press and primary metal circuits, 114 litres per minute gives you solid headroom. Those applications tend to demand reliable directional control under load more than extreme flow volume, and the DG17V4-012N-H-10 is built right for that kind of duty. As long as your system demand stays within that flow ceiling, you shouldn't run into restriction issues during normal operation.
