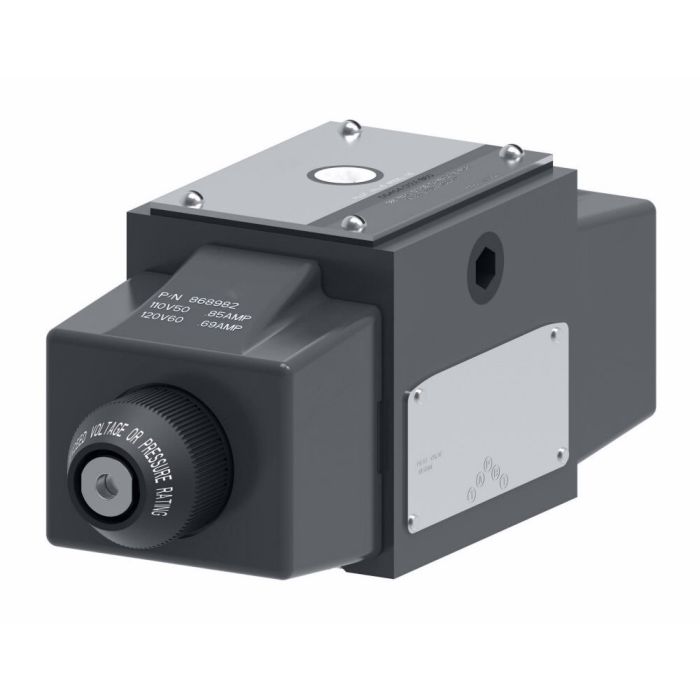

Vickers DG4S4012CB60S537 SOL. Valve

Ask A Question

Description & Features

Designed for three- or four-way directional control in demanding industrial hydraulic circuits, the Vickers DG4S4012CB60S537 Sol. Valve is a single-stage directional control valve suited to a wide range of applications including machine tool, press, marine/offshore, die casting and foundry, primary metal and paper, turbine control, and test and simulation equipment.

Rated for flow up to 95 litres per minute and drawing 35 watts, this valve mounts on industry-standard surfaces for straightforward integration into existing hydraulic systems. Buna-N seals provide reliable performance across common hydraulic fluid types. The valve is part of the Vickers DG4S4 series by Danfoss/Eaton, a platform known for broad model availability across a wide variety of circuit configurations.

SKU: 02-391861

Supplier Part Number (MPN): 02-391861

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Design
60 Series
Dimensions
6.84 in L x 2.58 in W x 5.08 in H
Domestic/Import
Domestic
Electrical Connection
Flying Leads Coil
Indicator Light
Without Indicator Light
Media
Petroleum Oil
Number of Stages
1
Performance
Standard
Seal Material
Buna-N
Segment Code
B
Series
DG4S4-01 60 Series
Special Features
Neoprene Seals and Aluminum Shading Ring
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 2
Spring Arrangement
Spring Centered, 3-Position
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Question by: Daryl A on Aug 25, 2025, 8:15 AM
Is this Vickers valve pretty simple to get mounted up on existing hydraulic setups?
Answer by: Customer Support on Aug 26, 2025, 12:50 PM
Easily mountable on industry-standard surfaces, this valve should integrate straightforwardly into existing hydraulic systems.
Question by: Sherry B on Sep 11, 2025, 3:22 PM
flow rate on this thing is listed at 95 litres per minute -- is that enough for a press application or is it cutting it close?
Answer by: Customer Support on Sep 13, 2025, 6:33 AM
For most press circuits, 95 litres per minute is plenty of working room. This valve is actually called out for press applications specifically, so the flow rating lines up with what those systems typically demand. As long as your circuit doesn't push past that ceiling, you're in good shape.
