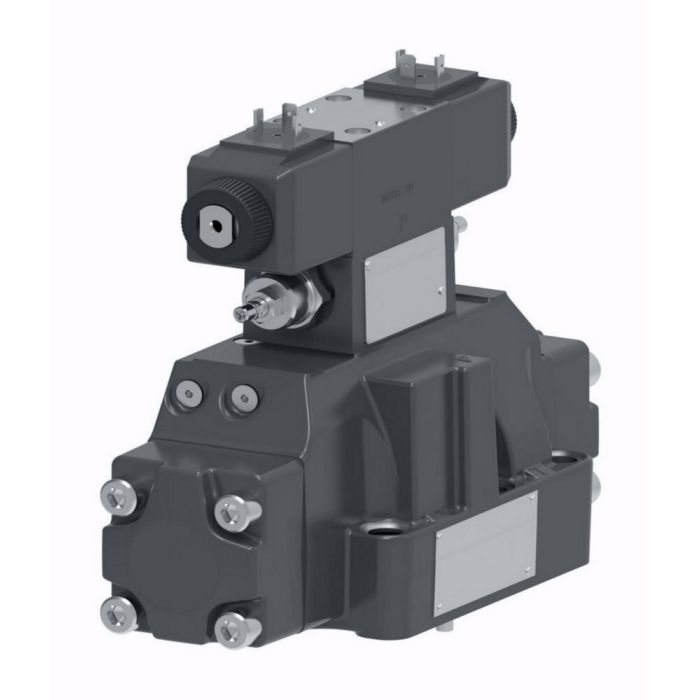

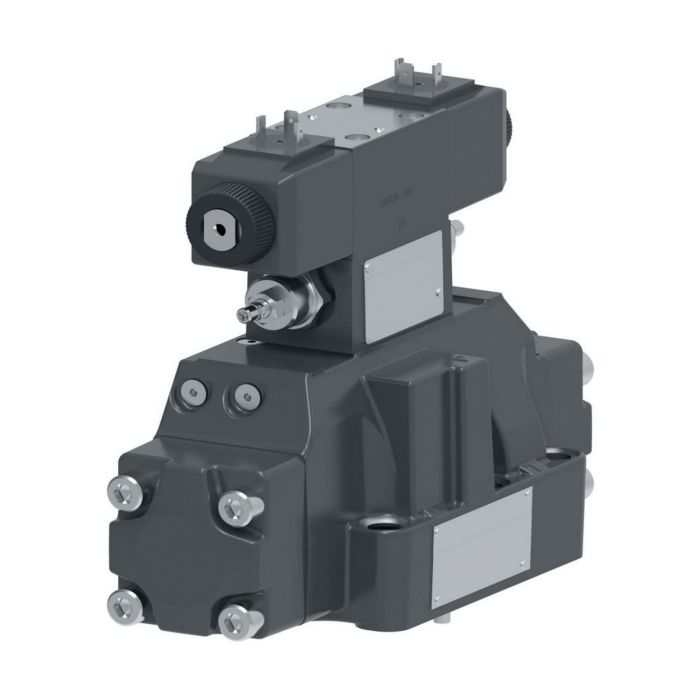

main product photo

VICKERS DG5V8H2A2TMUH10

Ask A Question

Description & Features

Designed for high-flow directional control in demanding industrial environments, the Vickers DG5V8H2A2TMUH10 is a two-stage, pilot-operated directional control valve capable of handling flow rates up to 700 litres per minute. It supports three- or four-way directional control configurations and mounts on industry-standard surfaces, making integration into existing hydraulic circuits straightforward.

Sealed with Buna-N and rated at 30 watts, this valve is well-suited for high-cycle, high-demand applications across die casting and foundry, press, primary metal, and marine/offshore environments. It also serves machine tool, test and simulation, and turbine control systems, including wind, steam, and water turbine applications, reflecting the breadth of configurations available within the Vickers DG5V-8 series.

SKU: 02-394291

Supplier Part Number (MPN): 02-394291

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid, Pilot Operated
Design
10 Series
Dimensions
10.45 in L x 4.67 in W x 9.36 in H
Domestic/Import
Domestic
Ext Pilot Pressure
Internal
Gauge Port Thread
7/16-20 UNF, SAE Thread
Indicator Light
Without Indicator Light
Int Pilot Drain
Internal
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
2
Performance
High
Seal Material
Buna-N
Segment Code
C
Series
DG5V-8 10 Series
Spool Control
Pilot Choke Adjustment
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 2
Spring Arrangement
Spring Offset End to End
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Question by: Ronnie R on Jan 8, 2026, 11:49 AM
Is this valve designed for continuous operation, or is it better suited for intermittent use in something like a press?
Answer by: Customer Support on Jan 9, 2026, 3:44 PM
Designed for high-cycle, high-demand applications, this Vickers valve is well-suited for continuous operation in environments like die casting, foundries, and presses, among others.
Question by: Ricky F on Nov 11, 2025, 3:10 PM
We run a pretty heavy press operation and been looking at pilot-operated valves that can keep up with the flow demands. How much flow can this thing actually handle?
Answer by: Customer Support on Nov 12, 2025, 6:02 PM
At 700 litres per minute, this valve sits well into high-flow territory. Pilot-operated design means it can manage that kind of volume without relying on a direct-acting solenoid to do the heavy lifting, which makes it a solid fit for press applications where flow demands are continuous and hard on equipment.
