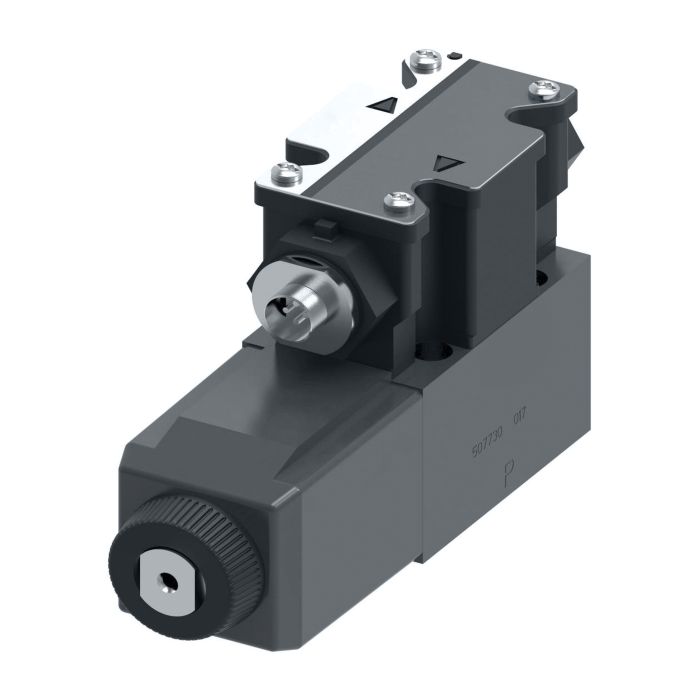

main product photo

VICKERS DG4V3R2AMFPM4WLD7HM760EN632

Ask A Question

Description & Features

A Vickers directional control valve designed for precise hydraulic flow management in industrial and mobile hydraulic circuits, the DG4V3R2AMFPM4WLD7HM760EN632 is a solenoid-operated, spring-centered directional control valve built to Vickers' established engineering standards. The model designation encodes a 4-way, 3-position spool configuration with specific porting and actuation options suited to demanding duty cycles.

As a D03 frame-size valve, it is compatible with standard D03 subplate mounting, making it straightforward to integrate into existing manifold assemblies. The valve falls within Vickers' DG4V-3 series, which is widely used across industrial machinery, injection molding equipment, and mobile hydraulic applications where reliable directional shifting and consistent spool response are required.

SKU: 02-394691

Supplier Part Number (MPN): 02-394691

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Design
60 Series
Dimensions
6.14 in L x 1.88 in W x 3.67 in H
Domestic/Import
Domestic
Electrical Connection
4-Pin Brad Harrison Connector
Indicator Light
With Indicator Light
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
1
Performance
Standard
Seal Material
FKM
Segment Code
B
Series
DG4V-3 60 Series
Special Features
M12, Male Connector Having no Ground
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 2
Spring Arrangement
Spring Offset End to End
Surge Suppressor Damper
With Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Question by: Roy P on Apr 4, 2026, 4:49 PM
What size subplate does this Vickers valve take? I'm looking to swap out an old one.
Answer by: Customer Support on Apr 6, 2026, 6:51 AM
This Vickers directional control valve uses a D03 frame size, so it's compatible with any standard D03 subplate mounting. That should make it pretty easy to integrate into your existing setup.
Question by: Carl B on Feb 8, 2026, 7:35 PM
Got an older machine with a D03 subplate already in it, this valve gonna drop right in without having to re-do the whole manifold setup?
Answer by: Customer Support on Feb 10, 2026, 1:00 PM
Standard D03 subplate mounting is exactly what this valve uses, so if your existing manifold is already built to that footprint, you're good to go. No reworking the manifold or chasing down adapter plates. It's a straightforward swap-in for any D03-compatible assembly.
