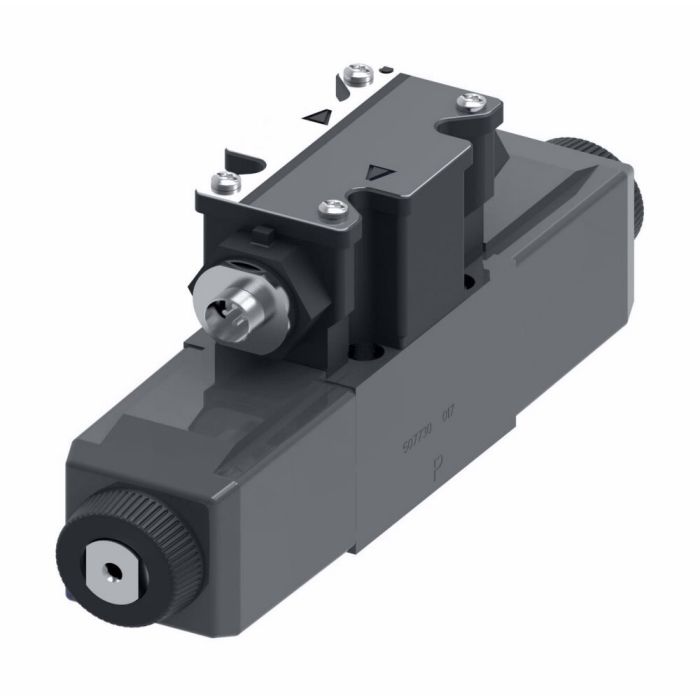

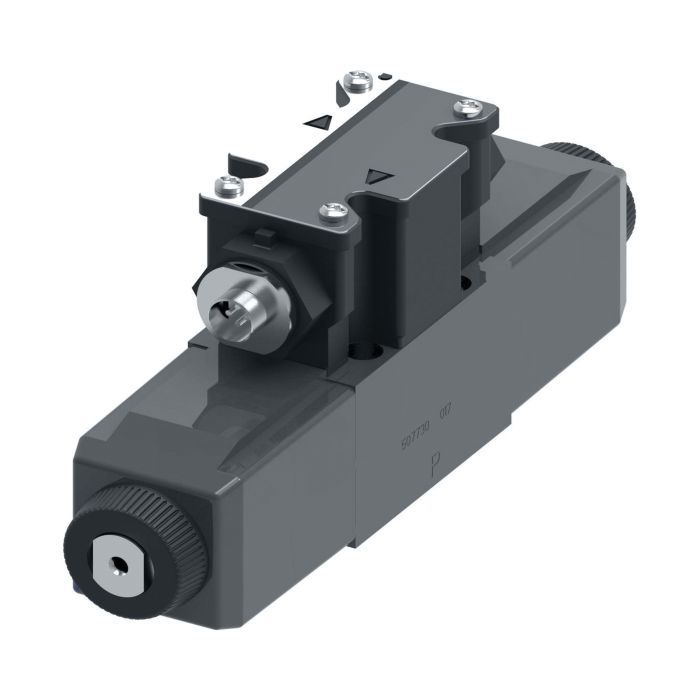

main product photo

VICKERS DG4V36CMFPM4WLD7H760EN623

Ask A Question

Description & Features

The VICKERS DG4V36CMFPM4WLD7H760EN623 is a directional control valve suitable for applications such as die casting, foundry work, machine tools, marine and offshore systems, presses, primary metal processing, paper mills, test equipment and simulation, and turbine control for wind, steam, and water systems.

This valve has a flow rate of 80 liters per minute and utilizes Buna-N seals. It has a product width of 1.88 inches and consumes 30 watts of power.

SKU: 02-394916

Supplier Part Number (MPN): 02-394916

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Design
60 Series
Dimensions
8.66 in L x 1.88 in W x 3.57 in H
Domestic/Import
Domestic
Electrical Connection
4-Pin Brad Harrison Connector
Indicator Light
With Indicator Light
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
1
Performance
High
Seal Material
FKM
Segment Code
B
Series
DG4V-3 60 Series
Special Features
Wired to Automotive Standard Wiring Scheme, Terminal Strip and Push-In Lights
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 6
Spring Arrangement
Spring Centered
Surge Suppressor Damper
With Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (1)

Question by: Scott C on Sep 27, 2025, 10:25 AM
Flow rate on this one says 80 liters per minute. That enough to run a press application without starving the circuit?
Answer by: Customer Support on Sep 28, 2025, 6:16 PM
For press applications, 80 liters per minute is well within the range this valve is built to handle. Press work is actually one of the listed applications for this unit, so you're not pushing it into territory it wasn't meant for. Just make sure your upstream supply matches or exceeds that flow demand and you won't have any issues on that front.
