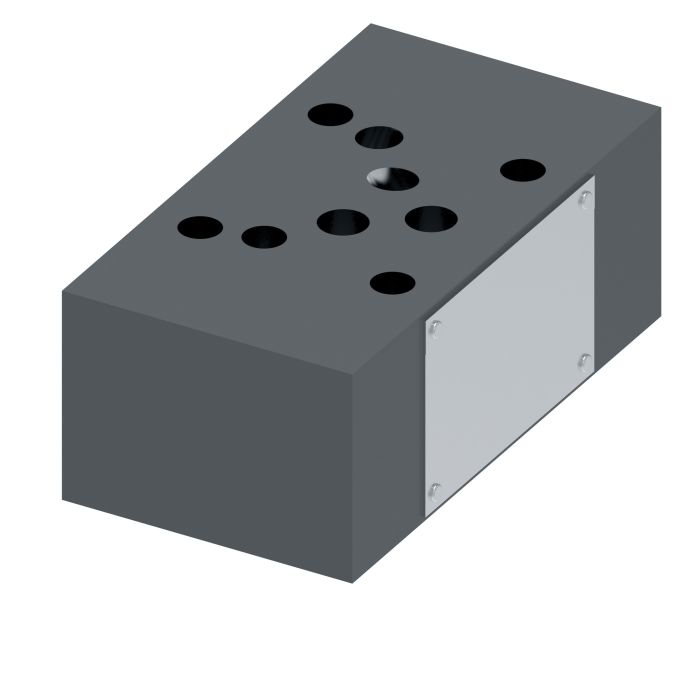

VICKERS DGMDC5YPL30

Description & Features

The Vickers DGMDC5YPL30 valve is part of the Vickers by Danfoss / Eaton DGMDC-5 30 Design SystemStak Valves series. This directional control valve is suitable for applications such as die casting, foundry work, machine tools, marine and offshore environments, presses, primary metal processing, paper mills, test equipment, simulation setups, and turbine control systems (wind, steam, and water).

This valve helps to reduce installation costs, eliminate external leakage, and boost resistance to contamination. It has a flow rate of 120 liters per minute and uses Buna-N seals. Its width is 2.82 inches.

SKU: 02-395246

Supplier Part Number (MPN): 02-395246

Specifications

Brand Vickers by Danfoss	Actuator Type Pressure Operated	Body Material Iron	Check Location Line P	Design Series 30 Series	Dimensions 5.43 in L x 2.82 in W x 1.97 in H	Direction of Flow Towards Actuator	Domestic/Import Domestic	Language English	Material Standard ANSI B93.7M-D03	Media Petroleum Oil	Mounting Type Manifold, Subplate	Nominal Size #5	Performance Standard	Port Operated Upon Pressure Port	Seal Material FKM	Segment Code C	Series DGMDC-5 Series	Valve Mount Type Subplate/Manifold

Product Questions & Answers (1)

Question by: Larry M on Jun 26, 2025, 10:34 AM

Flow rate on this one listed at 120 liters per minute, is that gonna hold up running presses or die casting equipment without dropping off?

Answer by: Customer Support on Jun 27, 2025, 10:44 AM

For press and die casting work, 120 liters per minute is a solid capacity. The DGMDC5YPL30 is built with those exact environments in mind, along with foundry use and primary metal processing, so it's not just tolerating that kind of duty, it's spec'd for it. The Buna-N seals also help keep things tight under the kind of conditions those applications throw at a valve regularly.
