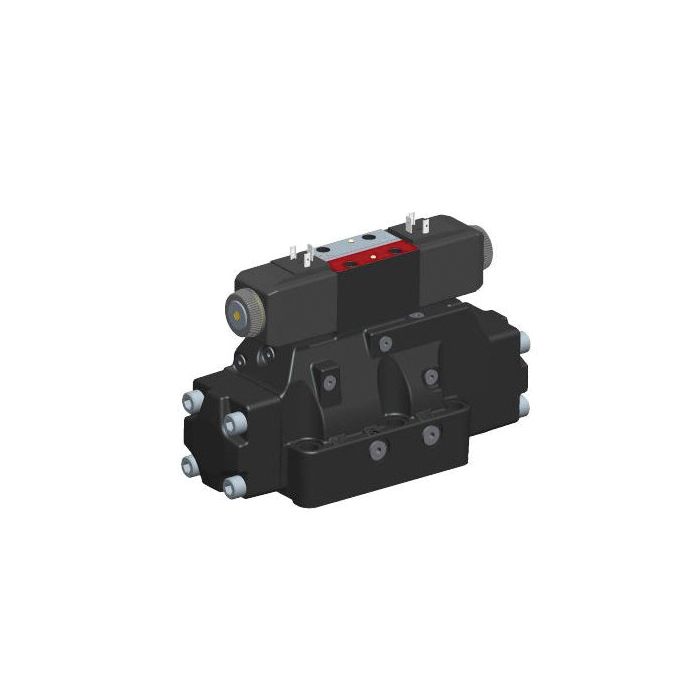

VICKERS F3-DG5V-8-H-2C-T-M-U-H-10

Description & Features

Designed for high-flow directional control across demanding industrial environments, the Vickers F3-DG5V-8-H-2C-T-M-U-H-10 is a two-stage pilot-operated valve capable of handling flow rates up to 700 litres per minute. It supports both three- and four-way directional control configurations, making it adaptable to a broad range of circuit requirements.

Buna-N seals provide reliable performance across typical hydraulic fluid applications, and the valve mounts on industry-standard surfaces for straightforward integration into existing systems. Suitable applications span die casting and foundry equipment, machine tools, presses, primary metal and paper processing, marine and offshore installations, test and simulation equipment, and turbine control systems, including wind, steam, and water turbine applications. The DG5V-8 series encompasses thousands of model variants, offering broad configurability to match specific application needs.

SKU: 02-396755

Supplier Part Number (MPN): 02-396755

Specifications

Brand Vickers by Danfoss	Actuator Type Solenoid, Pilot Operated	Design 10 Series	Dimensions 10.45 in L x 4.67 in W x 7.79 in H	Domestic/Import Domestic	Ext Pilot Pressure Internal	Gauge Port Thread 7/16-20 UNF, SAE Thread	Indicator Light Without Indicator Light	Int Pilot Drain Internal	Manual Override Plain	Media Phosphate Ester	Number of Stages 2	Performance High	Seal Material FKM	Series DG5V-8 10 Series	Spool Position Monitor Without Spool Position Monitor	Spool Type Spool 2	Spring Arrangement Spring Centered	Surge Suppressor Damper Without Surge Suppressor Damper	Valve Mount Type Subplate/Manifold

Product Questions & Answers (2)

Question by: Hugh L on Jun 21, 2025, 12:40 PM

If I'm swapping out an old valve, are the mounting surfaces pretty standard on this?

Answer by: Customer Support on Jun 23, 2025, 7:16 AM

This valve is designed for straightforward integration into existing systems because it mounts on industry-standard surfaces.

Question by: Bobby F on Jan 7, 2026, 1:34 PM

Flow rate on this thing goes up to 700 litres per minute, that kind of capacity work alright for press applications, or is it more suited to lighter-duty setups?

Answer by: Customer Support on Jan 8, 2026, 8:26 PM

Press applications are actually one of the listed use cases for this valve, so you're in the right territory. At up to 700 litres per minute, it's built for high-flow demand, which is exactly what heavy press circuits tend to throw at a directional control valve. It also supports both three-way and four-way configurations, so depending on how your press circuit is laid out, you've got some flexibility in how you wire it in.
