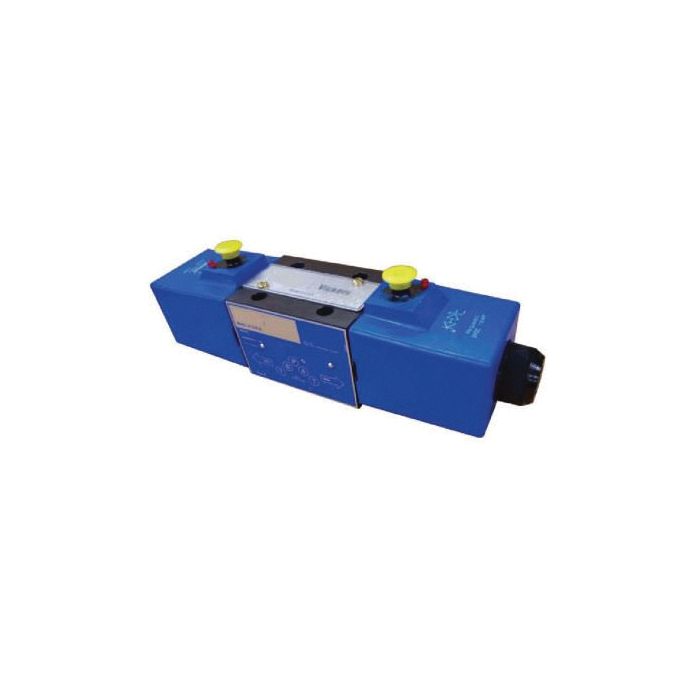

main product photo

VICKERS DG4V4016CVMWLB510

Ask A Question

Description & Features

Designed for demanding industrial environments, the Vickers DG4V4016CVMWLB510 is a single-stage directional control valve offering three- or four-way flow control with a maximum flow rate of 115 litres per minute. The valve operates at 30 watts and uses Buna-N seals, making it well-suited for applications where reliable sealing performance is required across a range of hydraulic fluids.

Mounting follows industry-standard surface patterns, supporting straightforward integration into a wide variety of hydraulic circuits. Application coverage includes machine tool, press, primary metal, die casting and foundry, marine and offshore, test equipment and simulation, and turbine control systems, spanning wind, steam, and water turbine configurations. Produced under the Vickers brand by Eaton/Danfoss, this valve is part of a broad DG4V4 series with numerous model configurations available to match specific system requirements.

SKU: 02-396848

Supplier Part Number (MPN): 02-396848

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Design
10 Series
Dimensions
9.38 in L x 2.84 in W x 4.59 in H
Domestic/Import
Domestic
Electrical Connection
1/2 in NPT Thread Wiring Housing
Indicator Light
With Indicator Light
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
1
Performance
Standard
Seal Material
Buna-N
Segment Code
C
Series
DG4V4-01 10 Series
Solenoid Energizing ID
Solenoid A at Port A/Solenoid B at Port B
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 6
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Question by: Cindy F on Mar 12, 2026, 6:14 AM
Flow rate on this one is listed at 115 litres per minute. that enough for a press application or should I be looking at something bigger?
Answer by: Customer Support on Mar 14, 2026, 6:53 AM
For press work, 115 litres per minute is a solid flow capacity and covers a wide range of press circuits without issue. This valve is explicitly listed for press applications, so it fits right in there. Whether it's enough really comes down to your system's cycle demands and line sizing, but the flow rate itself is well within what most press setups require.
Question by: Debbie S on Dec 23, 2025, 9:33 AM
Does this here valve come with the right kinda seals for different hydraulic fluids?
Answer by: Customer Support on Dec 24, 2025, 10:20 AM
This valve uses Buna-N seals, which work well with a range of hydraulic fluids.
