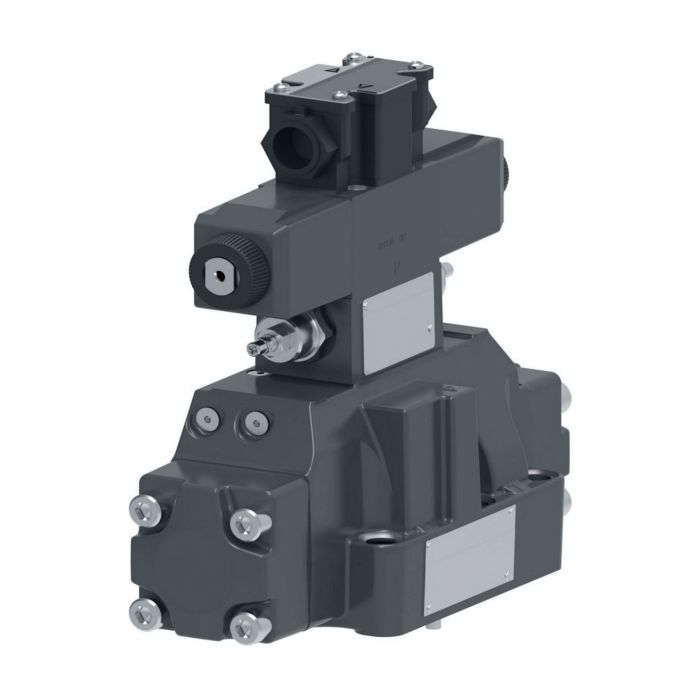

VICKERS DG5V-8-H-2C-2-M-FTWL-B-10

Description & Features

The VICKERS DG5V-8-H-2C-2-M-FTWL-B-10 is a two-stage directional control valve suitable for demanding applications such as die casting, foundry work, machine tools, marine and offshore equipment, presses, primary metal processing, paper mills, test equipment, simulation setups, and turbine control systems utilizing wind, steam, or water power.

This Vickers sub-branded valve features three- or four-way directional control and can manage a flow rate of up to 700 liters per minute. Constructed with Buna-N seals, it is designed for easy mounting on industry-standard surfaces. With a product width of 4.67 inches, it integrates seamlessly into a variety of hydraulic systems.

SKU: 02-397331

Supplier Part Number (MPN): 02-397331

Alternate Part Numbers: DG5V8H2C2MFTWLB10

Specifications

Brand Vickers by Danfoss	Actuator Type Solenoid, Pilot Operated	Design 10 Series	Dimensions 10.45 in L x 4.67 in W x 9.51 in H	Domestic/Import Domestic	Electrical Connection Flying Leads Wired Terminal Block, 1/2 in NPT Thread Wiring Housing	Ext Pilot Pressure Internal	Gauge Port Thread 7/16-20 UNF, SAE Thread	Indicator Light With Indicator Light	Int Pilot Drain External	Manual Override Plain	Media Petroleum Oil	Number of Stages 2	Performance High	Seal Material Buna-N	Series DG5V-8 10 Series	Spool Control Pilot Choke Adjustment	Spool Position Monitor Without Spool Position Monitor	Spool Type Spool 2	Spring Arrangement Spring Centered	Surge Suppressor Damper Without Surge Suppressor Damper	Valve Mount Type Subplate/Manifold

Product Questions & Answers (1)

Question by: Brett A on Mar 12, 2026, 11:30 AM

I'm replacing a valve on an older machine. How can I be sure this one'll bolt right up without a bunch of fuss?

Answer by: Customer Support on Mar 14, 2026, 6:50 AM

This Vickers valve is made to be easily mounted on industry-standard surfaces, so it should fit right in where your old one was. Its product width is 4.67 inches.
