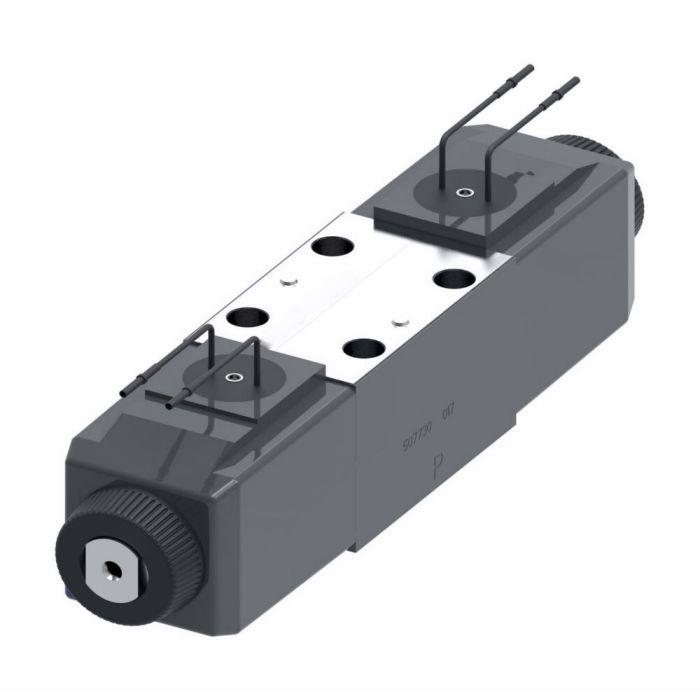

VICKERS KDG4V-3S-33C22A-M-KUP1-H5-60-EN6

Description & Features

Designed for demanding industrial environments, the Vickers KDG4V-3S-33C22A-M-KUP1-H5-60-EN6 proportional valve is a versatile solution for applications such as die casting, machine tools, and turbine control. This direct-acting valve offers seamless plug-and-play functionality, significantly reducing commissioning time. Available in three performance levels, ultra, high, and standard, it meets a wide range of application requirements efficiently.

With a flow rate of 22 liters per minute, this valve ensures optimal fluid control. The fluorocarbon seal material enhances durability, making it suitable for marine and offshore applications. The compact design, with a width of 1.81 inches, allows for easy integration into existing systems without compromising on performance.

SKU: 02-398973

Supplier Part Number (MPN): 02-398973

Alternate Part Numbers: KDG4V3S33C22AMKUP1H560EN6

Specifications

Brand Vickers by Danfoss	Actuator Type Solenoid Controlled	Build Type Spring Centered	Design Series 60 Series	Dimensions 8.64 in L x 1.81 in W x 3.58 in H	Domestic/Import Domestic	Electrical Connection Top Exit Flying Leads	Feedback Sensor Without Feedback Sensor	Language English	Manual Override Plain	Media Anti-Wear Hydraulic Oil, Non-Alkyl Based Phosphate Ester	Metering Meter-In	Number of Stages 1	On Board Electronics Without On Board Electronics	Performance Standard	ProFX Compatible Without ProFX Compatible	Reducer Module Without Reducer Module	Reverse Flow Check Without Reverse Flow Check	Seal Material FKM	Segment Code A	Series KDG4V-3 60 Series	Special Features Low Force Return Springs	Spool Type P Blocked, A and B to Tank	Symmetric Flow With Symmetric Flow	Valve Mount Type Subplate

Similar Products

Model Number	Flow Rate	Voltage Rating	Dimensions	Price	Action
02-325874			8.64 in L x 1.81 in W x 3.58 in H
02-336402			9.37 in L x 1.9 in W x 3.4 in H
02-364927			8.64 in L x 1.81 in W x 3.58 in H
02-391545			8.64 in L x 1.81 in W x 3.58 in H
02-397158			8.64 in L x 1.81 in W x 3.58 in H
02-401709			8.64 in L x 1.81 in W x 3.58 in H

Product Questions & Answers (1)

Question by: Rex A on Sep 25, 2025, 3:55 PM

Got a machine tool application running proportional valve control and trying to figure out if this Vickers unit'll handle the flow we need. We're looking at around 20 liters per minute. That enough headroom with this one?

Answer by: Customer Support on Sep 26, 2025, 4:19 PM

At a rated flow of 22 liters per minute, you've got a little room above your 20 LPM requirement. For a machine tool application, that's a reasonable fit. The valve is direct-acting, so response behavior should be predictable without a lot of fuss during setup. It's also listed specifically for machine tool use, so you're not forcing it into a role it wasn't built for.
