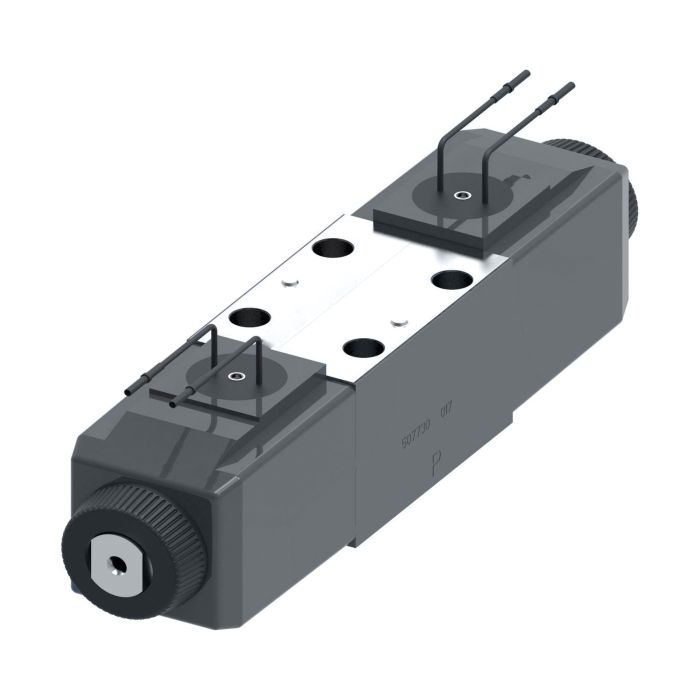

main product photo

VICKERS DG4V36CMKUG760EN696

Ask A Question

Description & Features

The Vickers DG4V36CMKUG760EN696 is a versatile IV Directional Control Valve engineered for precision and reliability across multiple industrial applications, including die casting, machine tooling, marine, and turbine control. With a flow rate of 80 liters per minute, this valve is suited for demanding environments requiring efficient fluid control. Constructed with Buna-N seal material, it ensures durability and resistance to various fluid types, making it a reliable choice in harsh conditions.

This valve features a compact design with a width of 1.88 inches and operates at a wattage of 30, optimizing space and energy efficiency. Ideal for use in primary metal processing, paper production, and test equipment, the Vickers DG4V36CMKUG760EN696 delivers consistent performance.

SKU: 02-399884

Supplier Part Number (MPN): 02-399884

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Design
60 Series
Dimensions
8.66 in L x 1.88 in W x 3.42 in H
Domestic/Import
Domestic
Electrical Connection
Top Exit Flying Leads
Indicator Light
Without Indicator Light
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
1
Performance
High
Seal Material
FKM
Segment Code
C
Series
DG4V-3 60 Series
Special Features
Metripack Female Connector
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 6
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Question by: Hugh C on Mar 27, 2026, 9:14 PM
What kind of fluids can this handle without the seals giving out?
Answer by: Customer Support on Mar 29, 2026, 6:30 AM
Constructed with Buna-N seal material, this valve is well-suited for use with many different fluid types commonly found in industrial settings.
Question by: Hank W on Mar 18, 2026, 7:14 AM
flow rate on this one is listed at 80 liters per minute, is that enough to handle press and die casting work without bogging down?
Answer by: Customer Support on Mar 19, 2026, 12:20 PM
For press and die casting applications, 80 liters per minute is a solid working flow rate. Both of those environments put real demand on a directional control valve, and this unit is specifically listed for die casting and foundry use as well as press applications. As long as your system is sized to stay within that flow ceiling, you should get consistent, reliable fluid control without performance dropping off.
