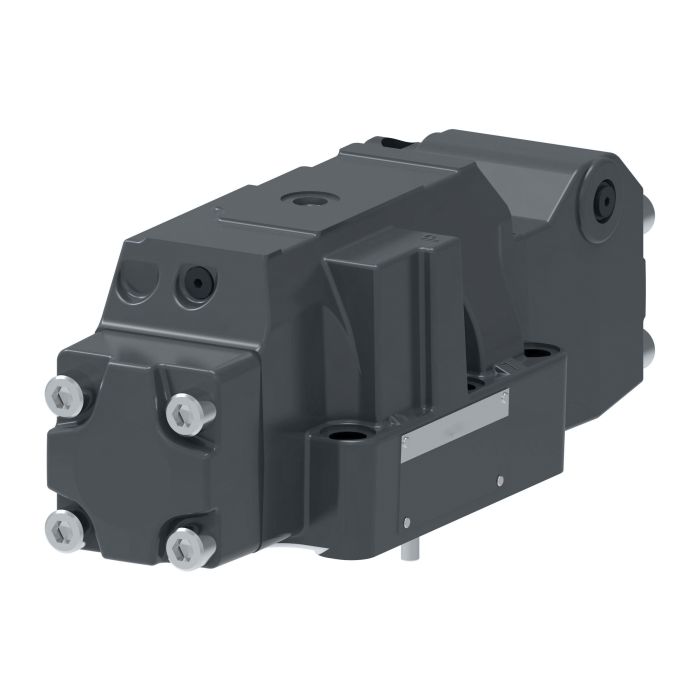

VICKERS DG17V86N10

Description & Features

Designed for demanding industrial hydraulic circuits, the Vickers DG17V86N10 is a two-stage directional control valve capable of handling flow rates up to 75 litres per minute. It supports three- or four-way directional control configurations and mounts on industry-standard surfaces, making it straightforward to integrate into existing hydraulic systems across a wide range of equipment types.

Buna-N seals provide reliable compatibility with standard hydraulic fluids. The valve is suited for use in machine tool, press, primary metal, and die casting and foundry environments, as well as marine and offshore installations, test equipment and simulation rigs, and turbine control applications covering wind, steam, and water systems. The Vickers model range encompasses thousands of configurations to address varied circuit and performance requirements.

SKU: 02-399937

Supplier Part Number (MPN): 02-399937

Specifications

Brand Vickers by Danfoss	Actuator Type Solenoid, Manual Lever	Design 10 Series	Dimensions 13.82 in L x 4.5 in W x 12.5 in H	Domestic/Import Domestic	Gauge Port Thread 7/16-20 UNF, SAE Thread	Indicator Light Without Indicator Light	Int Pilot Drain External	Language English	Media Petroleum Oil	Number of Stages 1	Performance Standard-Performance	Seal Material Buna-N	Series DG17V-8 Series	Spool Position Monitor Without Spool Position Monitor	Spool Type Spool 6	Spring Arrangement No Spring Detented	Surge Suppressor Damper Without Surge Suppressor Damper	Valve Mount Type Subplate/Manifold

Product Questions & Answers (2)

Question by: Rod J on May 28, 2025, 12:34 PM

Reckon this'll swap right into my existing setup? Gotta make sure it fits standard surfaces, y'know.

Answer by: Customer Support on May 29, 2025, 8:35 PM

This Vickers valve is designed for straightforward integration. It mounts on industry-standard surfaces.

Question by: Lance M on Aug 1, 2025, 8:02 AM

Flow rate on this one says 75 litres per minute, that enough for a two-stage directional setup runnin a press circuit without bottleneckin things?

Answer by: Customer Support on Aug 2, 2025, 12:04 PM

For most press circuit applications, 75 litres per minute gives you solid capacity in a two-stage directional control setup. The DG17V86N10 supports both three-way and four-way configurations, so depending on how your circuit is laid out, you have flexibility in how flow gets directed. Press applications are specifically listed among the environments this valve is built for, so it fits right in there without any workarounds needed.
