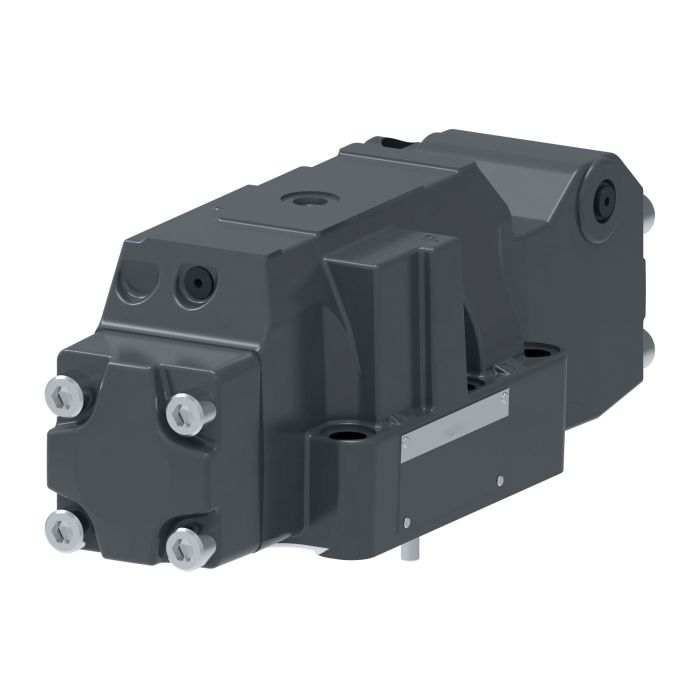

main product photo

VICKERS DG17V82C10

Ask A Question

Description & Features

The VICKERS DG17V82C10 is a two-stage directional control valve designed for diverse industrial applications. Suitable for die casting and foundry use, machine tools, marine and offshore equipment, presses, primary metal processing, paper mills, test equipment and simulation setups, and turbine control systems (wind, steam, and water).

This Vickers sub-brand valve features three- or four-way directional control and mounts easily on industry-standard surfaces. Constructed with Buna-N seals. It handles a flow rate of 75 liters per minute. This directional control valve is 4.5 inches wide.

SKU: 02-400046

Supplier Part Number (MPN): 02-400046

Alternate Part Numbers: DG17V82C10

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid, Manual Lever
Design
10 Series
Dimensions
13.82 in L x 4.5 in W x 12.5 in H
Domestic/Import
Domestic
Gauge Port Thread
7/16-20 UNF, SAE Thread
Indicator Light
Without Indicator Light
Int Pilot Drain
External
Language
English
Media
Petroleum Oil
Number of Stages
1
Performance
Standard-Performance
Seal Material
Buna-N
Series
DG17V-8 Series
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 2
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Question by: Neal K on Apr 28, 2025, 10:16 AM
Got a press line running on an older system and need a two-stage directional valve that'll bolt up without a bunch of custom work. Does the DG17V82C10 mount on standard surfaces or am I gonna need adapters?
Answer by: Customer Support on Apr 29, 2025, 11:32 AM
Mounting should be straightforward on your setup. The DG17V82C10 is built to fit industry-standard surfaces, so you won't need custom adapters or special machining in most press applications. It also gives you the option of three- or four-way directional control, which adds some flexibility depending on how your circuit is configured.
Question by: Gary W on Apr 11, 2025, 7:43 PM
Reckon this would be alright for a hydraulic press application?
Answer by: Customer Support on Apr 12, 2025, 9:03 PM
This Vickers valve is indeed well-suited for presses, along with a variety of other applications like die casting, machine tools, and even turbine control systems.
