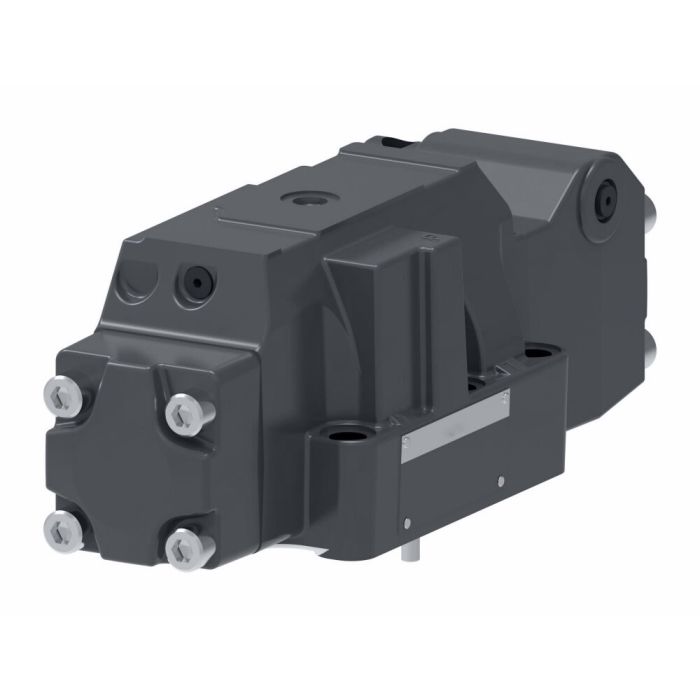

main product photo

Danfoss / Eaton Vickers DG17V Series

Ask A Question

Description & Features

The Eaton Vickers DG17V Series directional control valve is suitable for a variety of applications, including die casting and foundry work, machine tools, marine and offshore uses, presses, primary metal processing, paper production, test equipment and simulation, and turbine control for wind, steam, and water. This Vickers valve offers three- or four-way directional control and is easily mountable on industry-standard surfaces. With a flow rate of 75 liters per minute, this valve uses Buna-N seals and has a product width of 4.5 inches.

SKU: 02-400048

Supplier Part Number (MPN): 02-400048

Alternate Part Numbers: DG17V86C10

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid, Manual Lever
Design
10 Series
Dimensions
13.82 in L x 4.5 in W x 12.5 in H
Domestic/Import
Domestic
Gauge Port Thread
7/16-20 UNF, SAE Thread
Indicator Light
Without Indicator Light
Int Pilot Drain
External
Language
English
Media
Petroleum Oil
Number of Stages
1
Performance
Standard-Performance
Seal Material
Buna-N
Series
DG17V-8 Series
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 6
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (3)

Question by: Harvey R on Dec 13, 2025, 10:12 AM
Hey, is this thing gonna work okay for controlling direction in a machine tool setup?
Answer by: Customer Support on Dec 15, 2025, 6:54 AM
Absolutely, this Vickers DG17V directional control valve is well-suited for machine tool applications, plus die casting, marine/offshore, presses and more.
Question by: Vince S on Dec 27, 2025, 2:08 PM
got a DG17V-8-6C-10 on a machine here, is this the same two stage directional valve or am i lookin at the wrong series
Answer by: Customer Support on Dec 29, 2025, 8:29 AM
For replacement ID, the short description matches VICKERS DG17V-8-6C-10, and the product is part of the Danfoss and Eaton Vickers DG17V Series two stage directional control valves.
Question by: Cody G on Dec 21, 2025, 10:39 AM
flow rate on this one is 75 LPM, that right? trying to match it up to what we been running on the press line
Answer by: Customer Support on Dec 23, 2025, 6:48 AM
Correct, 75 litres per minute is the rated flow for this valve. For press applications it fits right in line with what the DG17V series was built to handle, so if your existing setup was running in that range you should be in good shape swapping to this one.
