VICKERS CG06BBDG0AMUD650

Description & Features

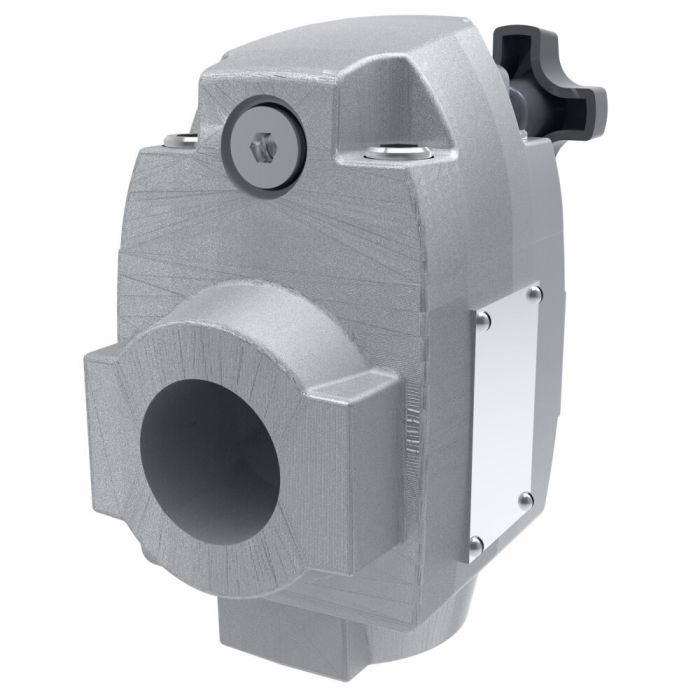

Eaton Vickers CG06BBDG0AMUD650 pressure control valves are suitable for applications requiring adjustable pressure relief. The valve can also regulate the pressure in a hydraulic circuit to a desired maximum.

This Vickers valve offers plug-and-play design and high-performance features. It has a flow rate of 227 liters per minute, and the seal material is Buna-N.

SKU: 02-400238

Supplier Part Number (MPN): 02-400238

Specifications

Actuator Type Solenoid	Adjustment Range 8.5 to 70 bar, 100 to 210 bar	Adjustment Type Screw with Locknut	Body Material Iron	Design 50 Series	Dimensions 5.54 in L x 5.03 in W x 10.75 in H	Domestic/Import Domestic	Hi-Vent Spring Without Hi-Vent Spring	Indicator Light Without Indicator Light	Media Petroleum Oil	Nominal Size #06	Number of Stages 2	Performance Standard	Seal Material Buna-N	Series CG-06 Series	Valve Mount Type Subplate/Manifold	Voltage Rating 220 VAC at 50 Hz, 240 VAC at 60 Hz

Product Questions & Answers (2)

Question by: Tommy M on Sep 13, 2025, 6:47 PM

got a circuit that keeps spiking pressure. is this valve meant to cap it off at a set max?

Answer by: Customer Support on Sep 15, 2025, 11:44 AM

In a hydraulic circuit where you need to keep pressure from climbing past a chosen limit, this valve is used as an adjustable pressure relief or regulating valve to hold the system to a desired maximum.

Question by: Rick M on Mar 3, 2026, 5:43 PM

what's the max flow this pressure control valve handles before it starts dropping off?

Answer by: Customer Support on Mar 5, 2026, 6:37 AM

Rated flow on this unit tops out at 227 litres per minute. That gives you solid headroom for most industrial hydraulic circuits where you need reliable pressure relief or regulation without choking the system down.
