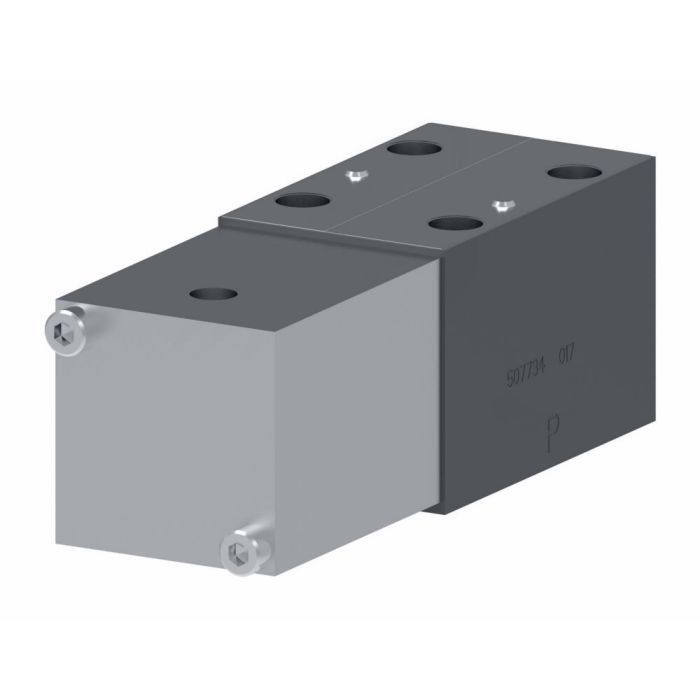

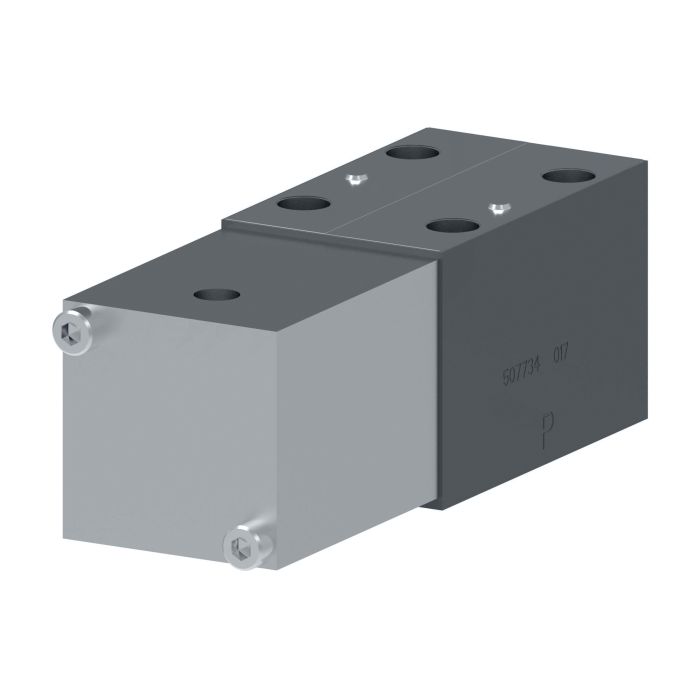

VICKERS DG18V4-012A-10

Description & Features

The Eaton Vickers DG18V4-012A-10 is a single-stage directional control valve designed for applications such as die casting, foundry work, machine tools, marine and offshore systems, presses, primary metal processing, paper mills, test equipment, simulation setups, and turbine control systems including wind, steam, and water turbines.

This Vickers directional control valve offers three- or four-way directional control and is easily mounted on industry-standard surfaces.

It features a flow rate of 114 liters per minute and utilizes Buna-N seals.

SKU: 02-400479

Supplier Part Number (MPN): 02-400479

Specifications

Actuator Type Air, Solenoid	Design 10 Series	Dimensions 5.49 in L x 2.75 in W x 2.89 in H	Domestic/Import Domestic	Indicator Light Without Indicator Light	Language English	Media Petroleum Oil	Number of Stages 1	Performance Standard-Performance	Seal Material Buna-N	Series DG18V-4 10 Series	Spool Position Monitor Without Spool Position Monitor	Spool Type Spool 2	Spring Arrangement Spring Offset	Surge Suppressor Damper Without Surge Suppressor Damper	Valve Mount Type Subplate/Manifold

Product Questions & Answers (1)

Question by: Shawn W on Dec 19, 2025, 10:23 AM

flow rate on this valve is listed at 114 LPM -- is that enough for a press application or would it be cutting it close?

Answer by: Customer Support on Dec 20, 2025, 7:25 PM

For most press setups, 114 liters per minute gives you solid working room. The DG18V4-012A-10 is explicitly listed for press applications, so it's not a stretch to say it was built with that kind of demand in mind. Whether it's cutting it close depends on your system's peak flow requirements, but the valve itself is rated and categorized for press use right out of the box.
