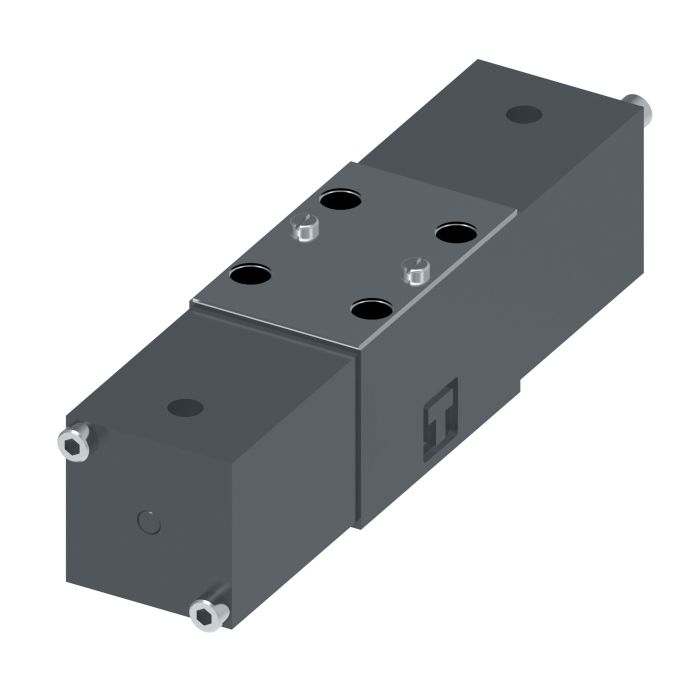

main product photo

DG18V4-012C-10-S551

Ask A Question

Description & Features

The Eaton Vickers DG18V4-012C-10-S551 directional control valve is suitable for a wide range of applications, including die casting and foundry, machine tool, marine/offshore, primary metal, paper, and test equipment and simulation uses. It's also suited to turbine control applications using wind, steam, or water.

This Vickers valve offers three- or four-way directional control and is easily mountable on industry-standard surfaces.

The DG18V4-012C-10-S551 offers a 114 liter per minute flow rate, and features Buna-N seals. It has a 2.75 inch width.

SKU: 02-400516

Supplier Part Number (MPN): 02-400516

Specifications

Brand
Vickers by Danfoss
Actuator Type
Air, Solenoid
Design
10 Series
Dimensions
8.49 in L x 2.75 in W x 2.89 in H
Domestic/Import
Domestic
Indicator Light
Without Indicator Light
Language
English
Media
Petroleum Oil
Number of Stages
1
Performance
Standard-Performance
Seal Material
Buna-N
Series
DG18V-4 10 Series
Special Features
Vent Holes Removed and Pilot Connection on End of Housing
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 2
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Similar Products

Model Number Dimensions Price Action
VICKERS DG18V4-018C-10

02-400421

8.49 in L x 2.75 in W x 2.89 in H

VICKERS DG18V4-012A-10

02-400479

5.49 in L x 2.75 in W x 2.89 in H

VICKERS DG18V4-012C-10

02-400480

8.49 in L x 2.75 in W x 2.89 in H

VICKERS DG18V4012AL10

02-400485

5.49 in L x 2.75 in W x 2.89 in H

VICKERS DG18V4012A10S551

02-400515

5.49 in L x 2.75 in W x 2.89 in H

Product Questions & Answers (2)

Question by: Neal W on Mar 20, 2026, 1:29 PM
So this is a three or four way valve? Just want to be sure before I order.
Answer by: Customer Support on Mar 22, 2026, 8:35 AM
It is a three- or four-way directional control valve, making it suitable for a variety of applications.
Question by: Dean S on Jul 20, 2025, 7:23 AM
flow rate on this unit, is 114 liters per minute the max, or is that a continuous rating?
Answer by: Customer Support on Jul 21, 2025, 3:16 PM
114 liters per minute is the rated flow for this valve. That figure represents the operational flow capacity for the DG18V4-012C-10-S551 as spec'd by Eaton Vickers. Running right at the rated limit on a continuous basis isn't always advisable depending on your system setup, but that number is what the valve is built around.
