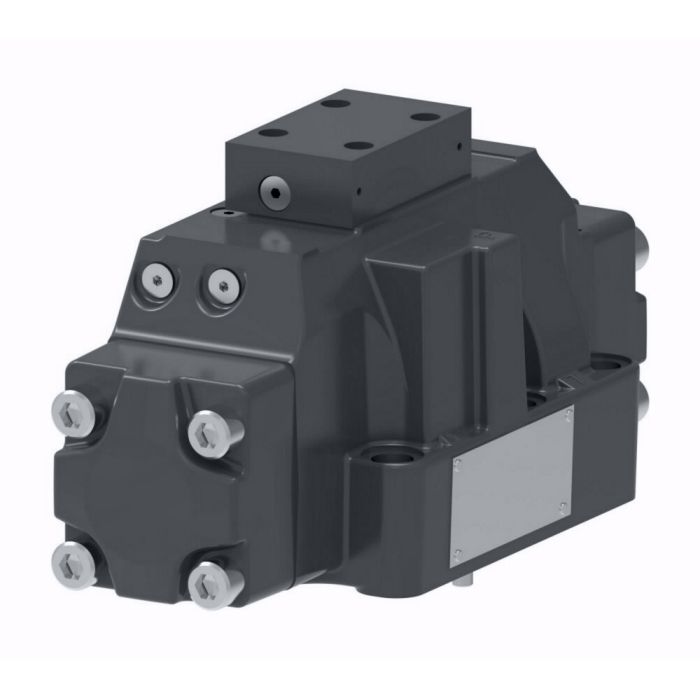

VICKERS-DG5V-8-8C-10-EN55

Ask A Question

Description & Features

The Vickers DG5V-8-8C-10-EN55 is a two-stage directional control valve, well-suited for applications such as die casting and foundry work, machine tools, marine/offshore equipment, presses, primary metal production, paper mills, test equipment and simulation systems, and turbine control for wind, steam, and water power.

This Vickers sub-brand valve offers three- or four-way directional control and is easily mounted on industry-standard surfaces. With a flow rate of 700 liters per minute and Buna-N seals, this directional control valve provides reliable performance across diverse industrial applications.

SKU: 02-400543

Supplier Part Number (MPN): 02-400543

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid, Pilot Operated
Design
10 Series
Dimensions
10.44 in L x 4.67 in W x 7.79 in H
Domestic/Import
Domestic
Ext Pilot Pressure
External
Gauge Port Thread
7/16-20 UNF, SAE Thread
Indicator Light
Without Indicator Light
Int Pilot Drain
External
Media
Petroleum Oil
Number of Stages
2
Performance
High
Seal Material
Buna-N
Series
DG5V-8 10 Series
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 8
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Question by: Terry C on Sep 24, 2025, 8:45 PM
Can this valve handle the kinda work you see in a die casting operation, with all the pressure and whatnot?
Answer by: Customer Support on Sep 26, 2025, 9:29 AM
For die casting and foundry work, this Vickers directional control valve is definitely suitable, as well as for machine tools, presses, and even marine/offshore equipment.
Question by: Pete W on Mar 29, 2026, 1:48 PM
Flow rate on this thing is listed at 700 liters per minute, is that gonna hold up running a press line or are we talking more of a peak number?
Answer by: Customer Support on Mar 31, 2026, 7:59 AM
700 liters per minute is the rated flow for this valve, so for press applications that's well within what it was built to handle. Press work is actually one of the core use cases for this model, along with die casting, machine tools, and similar high-demand industrial environments. As long as your system is sized to match that flow capacity, you shouldn't run into any surprises on a press line.
