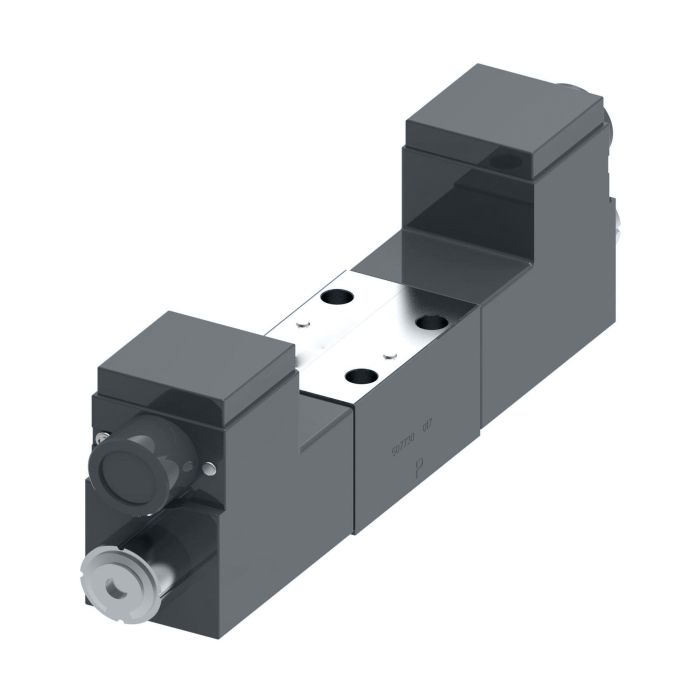

VICKERS DG4V4012CMX5H410S537

Ask A Question

Description & Features

The VICKERS DG4V4012CMX5H410S537 is a directional control valve suitable for a range of demanding applications including die casting, foundry work, machine tools, marine and offshore environments, presses, primary metal processing, paper production, test equipment and simulation, and turbine control systems. Certified to ATEX standards and cULus Listed, this valve offers reliable performance in various industrial settings.

This Vickers directional control valve is designed for easy mounting on industry-standard surfaces and features a flow rate of 115 liters per minute. Constructed with a Buna-N seal material, it provides secure and leak-free operation. With three- or four-way directional control, this valve offers versatility for different hydraulic requirements. Its 30-watt design ensures efficient energy consumption.

SKU: 02-400760

Supplier Part Number (MPN): 02-400760

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Design
10 Series
Dimensions
12.07 in L x 2.84 in W x 3.9 in H
Domestic/Import
Domestic
Indicator Light
Without Indicator Light
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
1
Performance
Standard
Seal Material
Buna-N
Segment Code
C
Series
DG4V4-01 10 Series
Special Features
Neoprene Seals and Aluminum Shading Ring
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 2
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (1)

Question by: Freddie S on Jan 31, 2026, 7:23 AM
Will this handle hydraulic fluid okay, or do I need special seals?
Answer by: Customer Support on Feb 2, 2026, 6:34 AM
Designed with Buna-N seals, this valve is well-suited for standard hydraulic fluids.
