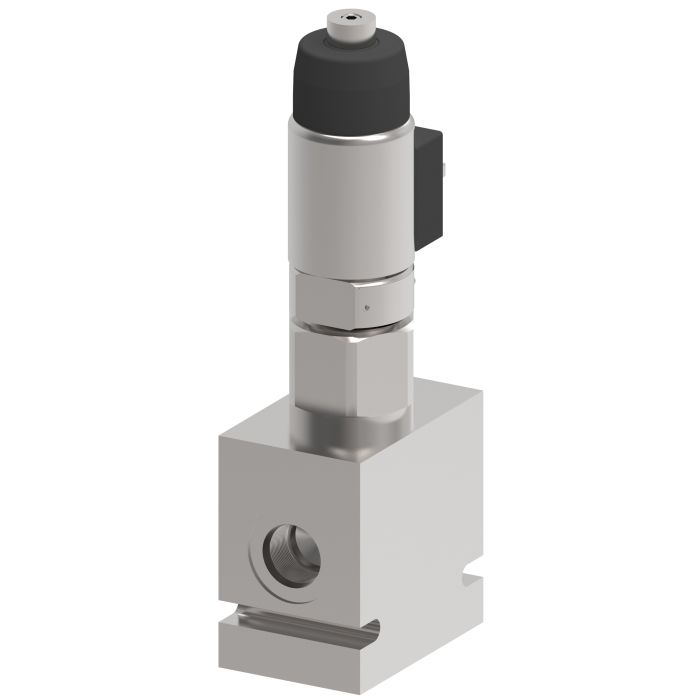

main product photo

DANFOSS / EATON-EPV16-A-10-S-10H-N-12D-S-N-13

Ask A Question

Description & Features

Designed for versatility in demanding environments, the Vickers by Danfoss / Eaton EPV16 Series Proportional Valves excel in applications such as harvesters, refuse haulers, and various mobile and industrial tasks. With a compact and economical design, these valves ensure maximum flexibility while requiring minimal space. The EPV16-A-10-S-10H-N-12D-S-N-13 model supports rated flows up to 160 L/min (42 USgpm), making it a reliable choice for high-performance hydraulic systems.

Featuring a poppet style and a port size of 5/8", this valve is engineered to deliver precise flow control. Operating at 12 volts, it integrates seamlessly into existing systems while maintaining efficient energy use. As part of the renowned Vickers sub-brand by Danfoss Power Solutions, the EPV16 Series is synonymous with quality and durability, providing dependable performance in even the most challenging conditions.

SKU: 02-400975

Supplier Part Number (MPN): 02-400975

Specifications

Brand
Vickers by Danfoss
Actuator Type
Screw
Body Material
Steel
Cavity
C-16-3S
Coil Termination
Deutsch Molded
Dimensions
7.29 in L x 1.71 in W x 9.04 in H
Diode
Without Diode
Domestic/Import
Import
Housing
With Housing
Lead Time
60
Media
Hydraulic Fluids
Mounting Type
Screw-In
Nominal Size
#16
Number of Ports/Ways
3-Port
Operation
Electronically Proportionally Controlled
Override Type
Screw-In
Port Type
SAE
Seal Material
Buna-N
Segment Code
C
Series
EPV16-13 Series
Softgoods Material
Nitrile
Style
Poppet

Product Questions & Answers (2)

Question by: Larry R on May 9, 2025, 12:08 PM
running a refuse hauler and need a proportional valve that won't take up a ton of space on the machine -- does this one fit that kind of setup pretty well?
Answer by: Customer Support on May 11, 2025, 6:35 AM
Compact builds and refuse hauler applications are exactly what the EPV16 series was put together for. It handles rated flows up to 160 L/min (42 USgpm), uses a 5/8" port, and runs on 12 volts, which fits right into the kind of mobile hydraulic setups common on that equipment. The poppet style also holds up well in demanding duty cycles where reliable flow control matters.
Question by: Dwayne W on May 24, 2025, 7:09 AM
What's the deal with these being used on harvesters? Is it something about the flow rate that makes it a good fit?
Answer by: Customer Support on May 25, 2025, 8:28 AM
They’re often chosen for harvesters, refuse haulers, and other mobile applications because they're designed to be reliable and compact, delivering precise flow control in demanding conditions where space is limited.
