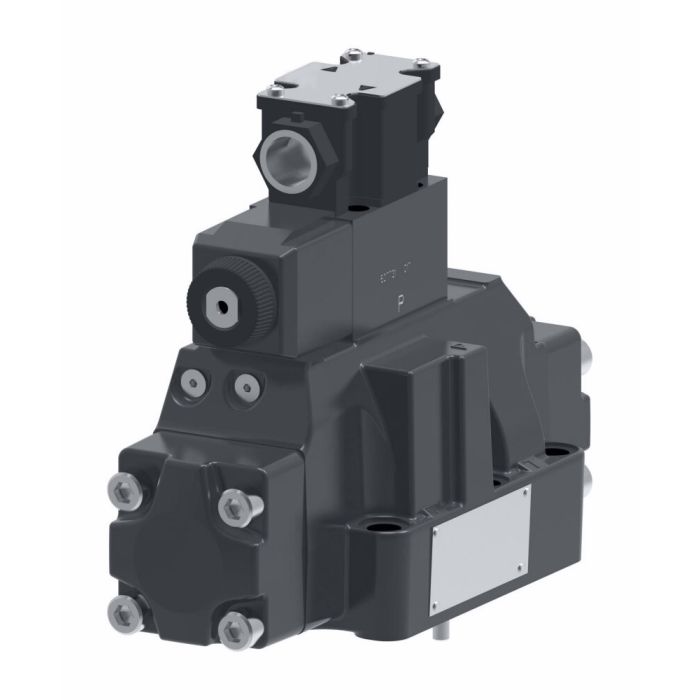

VICKERS-DG5V-8-H-2A-M-FWL-B-10-EN21

Ask A Question

Description & Features

Rated for flow up to 700 litres per minute, the VICKERS-DG5V-8-H-2A-M-FWL-B-10-EN21 is a two-stage directional control valve designed for demanding industrial hydraulic applications. Produced by Vickers, a Danfoss/Eaton brand, this DG5V-8 series valve supports three- or four-way directional control and mounts on industry-standard surfaces for straightforward integration into existing hydraulic circuits.

Buna-N seals provide reliable fluid compatibility across a wide range of hydraulic media. This valve is well suited to high-demand environments including die casting and foundry, press, machine tool, marine and offshore, primary metal and paper, test equipment and simulation, and turbine control applications covering wind, steam, and water systems.

SKU: 02-401114

Supplier Part Number (MPN): 02-401114

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid, Pilot Operated
Design
10 Series
Dimensions
10.45 in L x 4.67 in W x 7.94 in H
Domestic/Import
Domestic
Electrical Connection
1/2 in NPT Housing Flying Leads
Ext Pilot Pressure
Internal
Gauge Port Thread
7/16-20 UNF, SAE Thread
Indicator Light
Without Indicator Light
Int Pilot Drain
External
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
2
Performance
High
Seal Material
Buna-N
Series
DG5V-8 10 Series
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 2
Spring Arrangement
Spring Offset End to End
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (1)

Question by: Janice C on Oct 14, 2025, 6:42 AM
If I'm runnin' a die casting operation, is this valve suited for that kinda thing?
Answer by: Customer Support on Oct 15, 2025, 9:31 PM
Absolutely. This Vickers valve is well-suited for demanding environments like die casting and foundry work, along with presses, machine tools, marine and offshore applications, primary metal and paper processing, test equipment, simulation, and even turbine control systems using wind, steam, or water.
