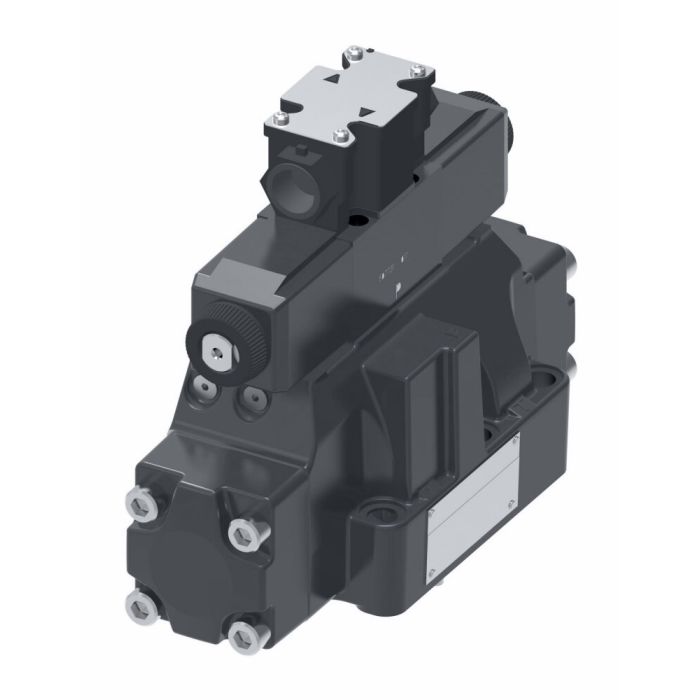

VICKERS-DG5V-8-H-0C-M-FWL-B-10-EN21

Ask A Question

Description & Features

The VICKERS-DG5V-8-H-0C-M-FWL-B-10-EN21 is a two-stage directional control valve suitable for a wide range of applications. These include die casting and foundry work, machine tools, marine and offshore environments, presses, primary metal processing, the paper industry, test equipment and simulation, and turbine control for wind, steam, and water systems.

This Vickers valve offers three- or four-way directional control and is easily mountable on industry-standard surfaces. Constructed with Buna-N seals, it provides a flow rate of 700 liters per minute. The product's width is 4.67 inches.

SKU: 02-401115

Supplier Part Number (MPN): 02-401115

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid, Pilot Operated
Design
10 Series
Dimensions
10.45 in L x 4.67 in W x 7.94 in H
Domestic/Import
Domestic
Electrical Connection
1/2 in NPT Housing Flying Leads
Ext Pilot Pressure
Internal
Gauge Port Thread
7/16-20 UNF, SAE Thread
Indicator Light
With Indicator Light
Int Pilot Drain
External
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
2
Performance
High
Seal Material
Buna-N
Series
DG5V-8 10 Series
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 0
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Question by: Ronnie T on Feb 14, 2026, 1:04 PM
what kind of environments is this valve built to handle? asking cause we run some pretty rough conditions in our shop and need something that holds up
Answer by: Customer Support on Feb 16, 2026, 9:08 AM
Foundries, offshore setups, paper mills, marine environments, press use, primary metal processing, and turbine control systems are all listed application areas for this valve. It uses Buna-N seals, which hold up well in industrial conditions where fluid compatibility and wear resistance matter. If your shop falls into any of those categories, this unit was built with those demands in mind.
Question by: Debbie R on Aug 3, 2025, 6:19 PM
Can this Vickers valve handle the kind of flow rates we see in our paper mill, like around 700 liters per minute?
Answer by: Customer Support on Aug 5, 2025, 6:25 AM
Yes, this Vickers DG5V-8-H-0C-M-FWL-B-10-EN21 valve is designed to handle a flow rate of 700 liters per minute, making it suitable for the flow demands in paper industry applications.
