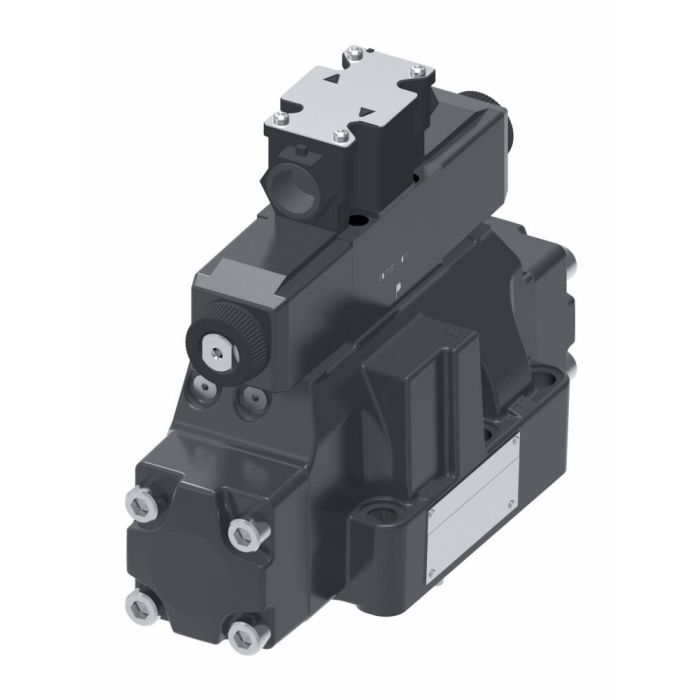

VICKERS-DG5V-8-H-2C-K-M-FWL-B-10-EN21

Ask A Question

Description & Features

Rated for flow up to 700 litres per minute, the VICKERS-DG5V-8-H-2C-K-M-FWL-B-10-EN21 is a two-stage directional control valve designed for demanding industrial hydraulic circuits. It supports three- or four-way directional control and mounts to industry-standard surfaces, making integration into existing hydraulic systems straightforward across a wide range of equipment configurations.

Featuring Buna-N seals, this Vickers valve is suited for applications including die casting and foundry equipment, machine tools, presses, primary metal and paper processing machinery, marine and offshore installations, turbine control systems, and test and simulation equipment. The DG5V-8 series offers broad model availability to accommodate varied system requirements across these sectors.

SKU: 02-401123

Supplier Part Number (MPN): 02-401123

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid, Pilot Operated
Design
10 Series
Dimensions
10.45 in L x 4.67 in W x 7.94 in H
Domestic/Import
Domestic
Electrical Connection
1/2 in NPT Housing Flying Leads
Ext Pilot Pressure
Internal
Gauge Port Thread
7/16-20 UNF, SAE Thread
Indicator Light
With Indicator Light
Int Pilot Drain
External
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
2
Performance
High
Seal Material
Buna-N
Segment Code
C
Series
DG5V-8 10 Series
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 2
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold
