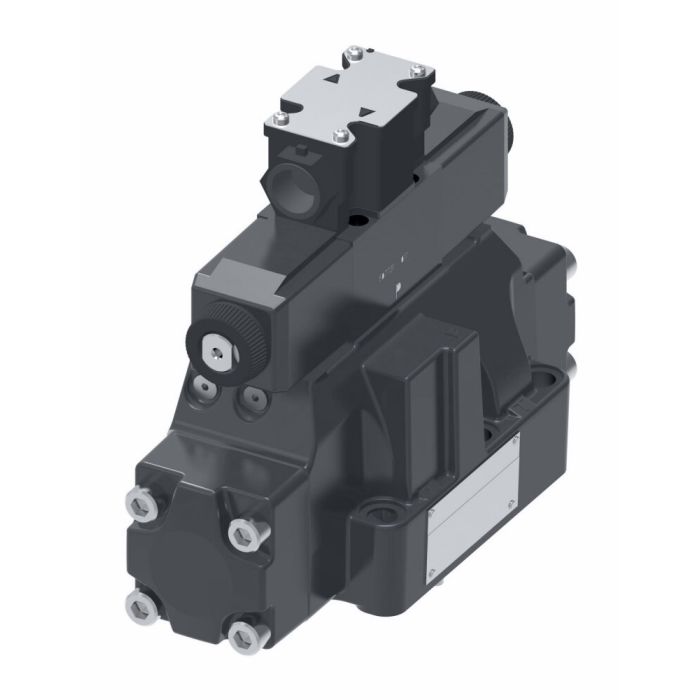

VICKERS-DG5V-8-H-2C-T-M-FWL-B-10-EN21

Ask A Question

Description & Features

The Vickers DG5V-8-H-2C-T-M-FWL-B-10-EN21 directional control valve is suitable for a range of applications including die casting, foundry work, machine tools, marine and offshore environments, presses, primary metal processing, paper mills, test equipment, simulation setups, and turbine control systems using wind, steam, or water.

This Vickers valve offers three- or four-way directional control and is designed for easy mounting on industry-standard surfaces. It handles a flow rate of 700 liters per minute and features Buna-N seals. The product's width measures 4.67 inches.

SKU: 02-401125

Supplier Part Number (MPN): 02-401125

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid, Pilot Operated
Design
10 Series
Dimensions
10.45 in L x 4.67 in W x 7.94 in H
Domestic/Import
Domestic
Electrical Connection
1/2 in NPT Housing Flying Leads
Ext Pilot Pressure
Internal
Gauge Port Thread
7/16-20 UNF, SAE Thread
Indicator Light
With Indicator Light
Int Pilot Drain
Internal
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
2
Performance
High
Seal Material
Buna-N
Series
DG5V-8 10 Series
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 2
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Similar Products

Model Number Media Seal Material Dimensions Price Action
Vickers DG5V 8 H 2A M FW B 10

02-325842

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

VICKERS F3-DG5V-8-H-2C-M-FW-B-10

02-325846

Phosphate Ester

FKM

10.45 in L x 4.67 in W x 7.94 in H

VICKERS DG5V8H0CEMFWB10

02-325877

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

Vickers DG5V 8 H 2C T M FW B 10

02-325898

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

VICKERS DG5V 8 S 2C 2 T M FPA5WL B 10

02-329108

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 9.51 in H

VICKERS DG5V 8 S 2C 2 T M FW B 10

02-329110

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 9.51 in H

VICKERS DG5V8H2CMFTWLB10

02-329116

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

Vickers DG5V 8 H 2C M FW B 10

02-329117

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

VICKERS DG5V8H6CETMFWB10

02-329163

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

Vickers DG5V 8 S 6C M FPA5WL B 10

02-329164

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

Vickers DG5V 8 H 6C M FW B 10

02-329168

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

VICKERS DG5V8H6AETMFWB10

02-329175

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

Vickers DG5V 8 S 6C T M FTWL B 10

02-329179

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

Vickers DG5V 8 S 33C M FTWL B 10

02-329245

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

Vickers DG5V 8 S 3C T M FTWL B 10

02-329256

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

Vickers DG5V 8 H 6C T M FTWL B 10

02-330411

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

VICKERS DG5V8H6CEMFWB10

02-330421

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

VICKERS DG5V8H33CMFWB10

02-330422

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

VICKERS DG5V8H3CETMFWB10

02-330423

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

Vickers DG5V 8 S 9N M FTWL B 10

02-330433

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

VICKERS DG5V8H6CTMFWB10

02-330476

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

Vickers DG5V 8 H 3C M FW B 10

02-330477

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

Vickers DG5V 8 H 52C M FW B 10

02-330948

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

Vickers DG5V 8 H 0C M FW B 10

02-330949

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

Vickers DG5V 8 S 2N T K M FTWL B 10

02-337163

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

Vickers DG5V 8 H 2C T K M FW B 10

02-338305

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

Vickers DG5V 8 H 2C T M FTWL B 10

02-339932

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

VICKERS DG5V 8 H 6C 2 T M FTWL B 10

02-342098

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 9.51 in H

VICKERS DG5V8H9AEMFWB10

02-342345

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

Vickers DG5V 8 H 2A E M FW B 10

02-342395

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

Vickers DG5V 8 H 3C T K M FTWL B 10

02-342421

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

VICKERS DG5V8H6C3TMFWB10

02-342445

Petroleum Oil

Buna-N

16.37 in L x 4.67 in W x 9.51 in H

Vickers F3 DG5V 8 H 3C M FTWL B 10

02-342612

Phosphate Ester

FKM

10.45 in L x 4.67 in W x 7.94 in H

Vickers DG5V 8 H 2C S M FW B 10

02-343471

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

VICKERS DG5V 8 H 0C 2 T S M FW B 10

02-343630

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 9.51 in H

VICKERS DG5V8H2CXEMFTWLB10

02-343633

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

VICKERS DG5V 8 H 6C 2 M FW B 10

02-343828

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 9.51 in H

Vickers DG5V 8 H 2C T M FPA5WL B 10

02-343876

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

VICKERS DG5V8H2CXMFTWLB10

02-343881

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

VICKERS DG5V8S2ATKMFWB10

02-355409

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

VICKERS-F3-DG5V-8-H-2C-T-M-FTWL-B-10

02-355652

Phosphate Ester

FKM

10.45 in L x 4.67 in W x 7.94 in H

VICKERS DG5V8H0CETMFWB10

02-360020

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

VICKERS DG5V8H2ATMFWB10

02-360351

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

VICKERS DG5V8H33CTMFWB10

02-360352

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

VICKERS DG5V8H3C1TKMFTWLB10

02-361952

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

VICKERS DG5V8H6CEMFTWLB10

02-362304

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

VICKERS DG5V8H2AETMFWB10

02-363115

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

VICKERS DG5V8H6C1MFTWLB10

02-390433

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

VICKERS DG5V8H2A1TMFWB10

02-390929

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

VICKERS DG5V8H33CTMFTWLB10

02-391188

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

VICKERS DG5V8H2C2TMFWB10

02-393280

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 9.51 in H

VICKERS DG5V8H2C2TMFTWLB10

02-393294

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 9.51 in H

VICKERS DG5V8H6C2TMFWB10

02-393498

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 9.51 in H

VICKERS DG5V8H2A1MFWB10

02-394025

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

VICKERS DG5V8H2C1TMFTWLB10

02-394057

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

VICKERS DG5V8H2C3TMFWB10

02-396308

Petroleum Oil

Buna-N

16.37 in L x 4.67 in W x 9.51 in H

VICKERS DG5V-8-H-2C-2-M-FTWL-B-10

02-397331

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 9.51 in H

VICKERS DG5V8H6C2MFTWLB10

02-397385

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 9.51 in H

VICKERS DG5V8H33C2MFTWLB10

02-397617

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 9.51 in H

VICKERS DG5V8S6C1TMFTWB10

02-397719

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

VICKERS DG5V8H3C1TMFWB10

02-399123

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

VICKERS DG5V8H3CTMFTWLB10

02-399433

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

VICKERS DG5V8H2NMFPBWLB10

02-400128

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.79 in H

VICKERS DG5V8H7ATMFWB10EN441

02-400235

Petroleum Oil

Buna-N

10.44 in L x 4.67 in W x 7.94 in H

VICKERS DG5V-8-H-33C-M-FTWL-B-10 -EN465

02-400731

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

VICKERS-DG5V-8-H-2C-K-M-FWL-B-10-EN21

02-401123

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 7.94 in H

VICKERS DG5V8H0C2MFWB10

02-413952

Petroleum Oil

Buna-N

10.45 in L x 4.67 in W x 9.51 in H

Product Questions & Answers (2)

Question by: Dustin W on Nov 10, 2025, 9:08 PM
Got a press line running pretty hard and we're looking at flow demands up around 600 liters a minute. This valve rated to handle that kind of throughput without choking?
Answer by: Customer Support on Nov 12, 2025, 5:35 PM
At 700 liters per minute, there's enough headroom to handle 600 without sweating it. The DG5V-8 series is built for heavy industrial work, and press applications are right in its wheelhouse. You're not pushing anywhere close to the rated ceiling, so flow restriction shouldn't be a concern there.
Question by: Jerry W on Feb 12, 2026, 8:37 AM
What width is this Vickers valve?
Answer by: Customer Support on Feb 13, 2026, 6:18 PM
This valve measures 4.67 inches wide.
