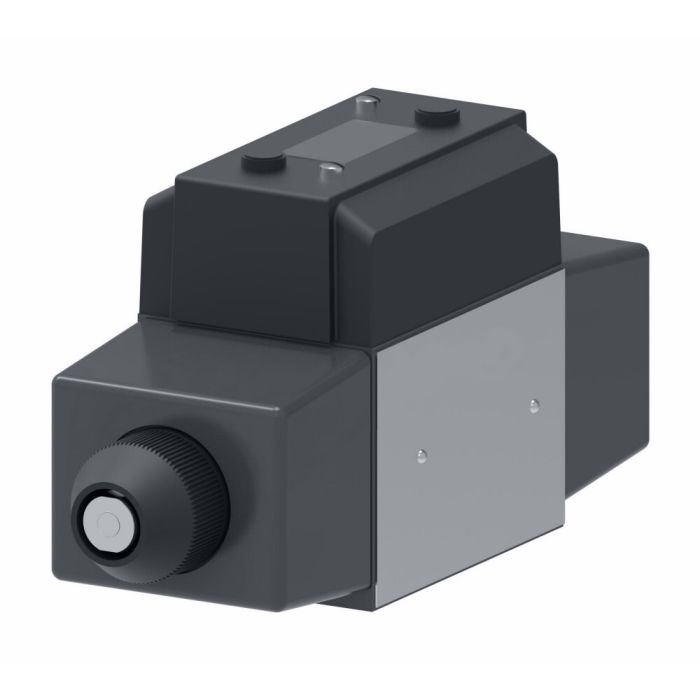

VICKERS-DG4V4-01-2C220-M-W-BB-4-10

Description & Features

Designed for versatility in demanding environments, the Vickers DG4V4-01-2C220-M-W-BB-4-10 Directional Control Valve is ideal for applications in die casting, machine tools, marine/offshore, and primary metal industries. With a robust flow rate of 115 liters per minute, this valve ensures efficient hydraulic control across various sectors, including paper production and turbine control systems.

Featuring three- or four-way directional control, this valve is easily mountable on industry-standard surfaces, providing seamless integration into existing systems. Constructed with durable Buna-N seal material, it offers reliability and longevity in challenging conditions. The Vickers sub-brand ensures compatibility with a multitude of hydraulic systems, making it a trusted choice for professionals seeking dependable performance.

SKU: 02-402468

Supplier Part Number (MPN): 02-402468

Specifications

Brand Vickers by Danfoss	Actuator Type Solenoid	Design 10 Series	Dimensions 9.38 in L x 2.84 in W x 4.59 in H	Domestic/Import Domestic	Electrical Connection 1/2 in NPT Thread Wiring Housing	Indicator Light Without Indicator Light	Manual Override Plain	Media Petroleum Oil	Number of Stages 1	Performance Standard	Seal Material Buna-N	Series DG4V4-01 10 Series	Shift Type Variable	Spool Position Monitor Without Spool Position Monitor	Spool Type Spool 2	Spring Arrangement Spring Centered	Surge Suppressor Damper Without Surge Suppressor Damper	Valve Mount Type Subplate/Manifold

Similar Products

Model Number	Seal Material	Dimensions
02-305373	Buna-N	9.38 in L x 2.84 in W x 4.59 in H
02-337076	Buna-N	9.38 in L x 2.84 in W x 4.59 in H
02-337081	FKM	9.38 in L x 2.84 in W x 4.59 in H
02-337549	Buna-N	6.88 in L x 2.84 in W x 4.59 in H
02-337551	Buna-N	6.88 in L x 2.84 in W x 4.59 in H
02-337554	Buna-N	9.38 in L x 2.84 in W x 4.59 in H
02-337555	Buna-N	9.38 in L x 2.84 in W x 4.59 in H
02-337985	Buna-N	9.38 in L x 2.84 in W x 4.59 in H
02-339048	Buna-N	6.88 in L x 2.84 in W x 4.59 in H
02-339459	Buna-N	9.38 in L x 2.84 in W x 4.59 in H
02-342356	Buna-N	9.38 in L x 2.84 in W x 4.59 in H
02-342938	Buna-N	6.88 in L x 2.84 in W x 4.59 in H
02-344019	FKM	9.38 in L x 2.84 in W x 4.59 in H
02-344320	Buna-N	9.38 in L x 2.84 in W x 4.59 in H
02-344967	Water Glycol	6.88 in L x 2.84 in W x 4.59 in H
02-355395	Buna-N	9.38 in L x 2.84 in W x 4.59 in H
02-355627	Buna-N	9.38 in L x 2.84 in W x 4.59 in H
02-355628	Buna-N	6.84 in L x 2.84 in W x 4.59 in H
02-355649	Buna-N	9.38 in L x 2.84 in W x 4.59 in H
02-356581	Buna-N	6.88 in L x 2.84 in W x 4.59 in H
02-357515	FKM	6.88 in L x 2.84 in W x 4.59 in H
02-357937	Buna-N	9.38 in L x 2.84 in W x 4.59 in H
02-360365	Buna-N	6.88 in L x 2.84 in W x 4.59 in H
02-360401	Buna-N	9.38 in L x 2.84 in W x 4.59 in H
02-360602	Buna-N	9.38 in L x 2.84 in W x 4.59 in H
02-361435	Buna-N	9.38 in L x 2.84 in W x 4.59 in H
02-361471	Buna-N	6.88 in L x 2.84 in W x 4.59 in H
02-363790	FKM	9.38 in L x 2.84 in W x 4.59 in H
02-364176	Buna-N	6.88 in L x 2.84 in W x 4.59 in H
02-391087	Buna-N	6.88 in L x 2.84 in W x 4.59 in H
02-393177	FKM	6.88 in L x 2.84 in W x 4.59 in H
02-393568	Buna-N	9.38 in L x 2.84 in W x 4.59 in H
02-395005	FKM	9.38 in L x 2.84 in W x 4.59 in H
02-395205	FKM	6.88 in L x 2.84 in W x 4.59 in H
02-395305	Buna-N	6.88 in L x 2.84 in W x 4.59 in H
02-395307	Buna-N	6.88 in L x 2.84 in W x 4.59 in H
02-397325	Buna-N	6.88 in L x 2.84 in W x 4.59 in H
02-397870	Buna-N	6.88 in L x 2.84 in W x 4.59 in H
02-402432	Buna-N	9.38 in L x 2.84 in W x 4.31 in H
02-402453	Buna-N	6.88 in L x 2.84 in W x 4.59 in H
02-402454	Buna-N	9.38 in L x 2.84 in W x 4.59 in H
02-402456	Buna-N	9.38 in L x 2.84 in W x 4.59 in H
02-402463	Buna-N	9.38 in L x 2.84 in W x 4.59 in H
02-402465	Buna-N	6.88 in L x 2.84 in W x 4.59 in H
02-402467	Buna-N	9.38 in L x 2.84 in W x 4.59 in H
02-402469	Buna-N	9.38 in L x 2.84 in W x 4.59 in H
02-402472	Buna-N	9.38 in L x 2.84 in W x 4.59 in H
02-402590	Buna-N	6.88 in L x 2.84 in W x 4.59 in H

Product Questions & Answers (2)

Question by: Rod O on May 1, 2025, 11:45 AM

Flow rate on this one is listed at 115 liters per minute, is that enough to handle die casting equipment running pretty hard?

Answer by: Customer Support on May 3, 2025, 7:48 AM

For die casting applications, 115 liters per minute is a solid flow rate and well within the range that most die casting machinery demands from a directional control valve. The DG4V4 series was built with exactly that kind of environment in mind, so it's not just a general-purpose valve shoehorned into a tough application. Die casting and foundry use are explicitly listed as intended applications for this valve, so you're not pushing it outside its design intent.

Question by: Steve K on Oct 24, 2025, 12:52 PM

Will this handle hydraulic fluid okay, or do I need to swap out the seals?

Answer by: Customer Support on Oct 26, 2025, 8:42 AM

Designed with Buna-N seals, this directional control valve is compatible with standard hydraulic fluids. You shouldn't need to replace them unless you're using something specialized.
