main product photo

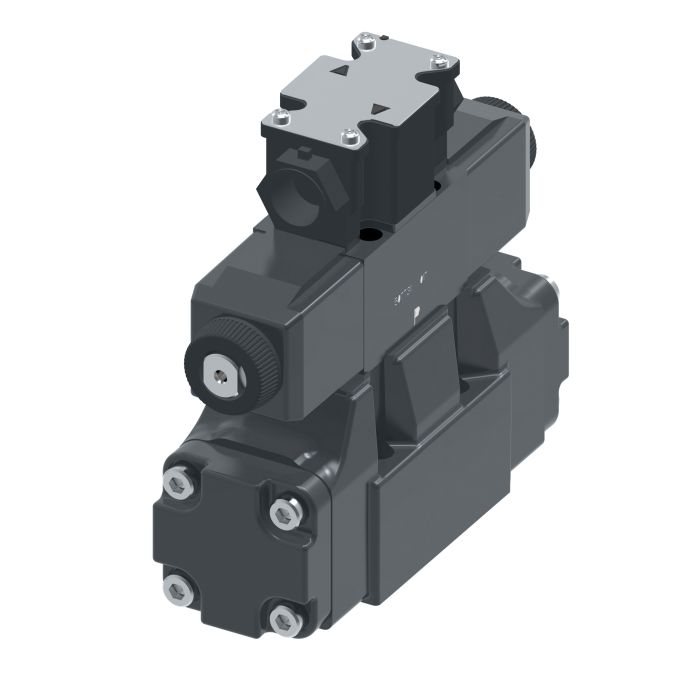

DANFOSS / EATON DG5V5-2N-M-FPBWL-B6-10

Ask A Question

Description & Features

Ideal for demanding industrial environments, the DG5V5-2N-M-FPBWL-B6-10 directional control valve from Danfoss / Eaton excels in diverse applications such as die casting, marine, and turbine control. With a robust flow rate of 160 liters per minute, it offers reliable performance across a range of settings. The valve is designed for easy mounting on industry-standard surfaces, ensuring seamless integration into your use.

Constructed with Buna-N seal material, this valve is engineered to withstand harsh conditions, providing durability and longevity. Its three- or four-way directional control versatility makes it suitable for numerous industrial applications, from machine tools to paper production. As part of the Vickers sub-brand, this valve is backed by Danfoss Power Solutions' reputation for excellence and innovation.

SKU: 02-402628

Supplier Part Number (MPN): 02-402628

Alternate Part Numbers: DG5V5-2N-M-FPBWL-B6-10, DG5V52NMFPBWLB610

Specifications

Actuator Type
Pilot Operated, Solenoid
Body Material
Iron
Design
10 Series
Dimensions
7.87 in L x 2.86 in W x 6.9 in H
Domestic/Import
Domestic
Electrical Connection
Instaplug Male and Female Receptacle
Enclosure Type
IP65, NEMA 4
Ext Pilot Pressure
Internal
Indicator Light
With Indicator Light
Int Pilot Drain
External
Language
English
Manual Override
Plain
Media
Petroleum Oil
Nominal Size
#5
Number of Ports/Ways
4-Port
Number of Stages
2
Performance
High-Performance
Port Type
SAE
Seal Material
Buna-N
Series
DG5V-5 10 Series
Softgoods Material
Nitrile
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 2
Spring Arrangement
No Spring Detented
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Ray J on Aug 11, 2025, 8:46 PM
What kind of stuff is this valve really good for? Like, what are people using it on?
Answer by: Customer Support on Aug 13, 2025, 7:22 PM
It's especially well-suited for applications like die casting, machine tools, marine and offshore equipment, presses, primary metal production, paper mills, test equipment, simulation setups, and turbine control systems (wind, steam, and water).
Question by: Danny M on May 16, 2025, 9:18 PM
flow rate on this one is 160 LPM, that enough for press or turbine work, or is that more of a light-duty number?
Answer by: Customer Support on May 18, 2025, 6:53 AM
For press applications and turbine control, 160 liters per minute is a solid working capacity. This valve is specifically listed for those uses, along with die casting, marine, and primary metal environments, so it's not a light-duty unit by any stretch. Whether that flow ceiling fits your specific system depends on your circuit demands, but the rating itself is well within the range that those industries typically require.
