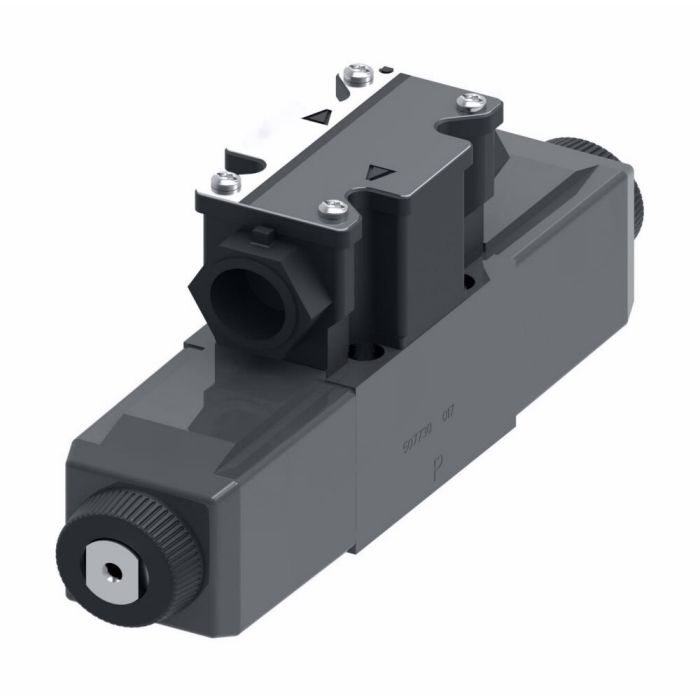

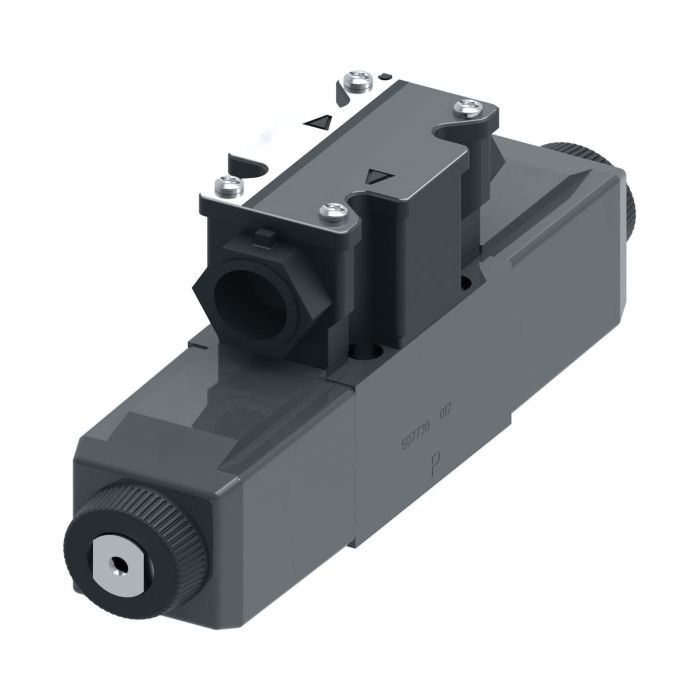

DANFOSS / EATON DG4V-3-2C-M-FW-H7-60-EN614

Ask A Question

Description & Features

Designed for versatility in demanding industrial environments, the Danfoss / Eaton DG4V-3-2C-M-FW-H7-60-EN614 directional control valve is an essential component for applications such as die casting, machine tool use, and turbine control. Its three- or four-way directional control offers flexibility, allowing it to adapt to various system requirements. With a robust flow rate of 80 liters per minute, this valve ensures efficient performance in high-demand settings.

This model is easily mountable on industry-standard surfaces, providing seamless integration into existing systems. The valve is constructed with Buna-N seal material, known for its durability and resistance to various hydraulic fluids, enhancing the longevity of the valve. The product measures 1.88 inches in width, allowing for compact installation spaces without compromising performance.

SKU: 02-402635

Supplier Part Number (MPN): 02-402635

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Body Material
Iron
Color
Gray
Design
60 Series
Dimensions
8.66 in L x 1.88 in W x 3.57 in H
Electrical Connection
1/2 in NPT Housing Flying Leads
Enclosure Type
IP65
Indicator Light
Without Indicator Light
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
1
Performance
High
Seal Material
FKM
Segment Code
B
Series
DG4V-3 60 Series
Softgoods Material
FKM
Special Features
Special Low Height Terminal Box with CSA Certification
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 2
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Question by: Neil Y on Nov 16, 2025, 7:52 AM
Reckon this'll fit where the old Eaton valve was? They all look kinda the same, but you know how that goes.
Answer by: Customer Support on Nov 17, 2025, 9:09 AM
This valve is designed for easy mounting on industry-standard surfaces, so it should integrate seamlessly into your existing system. Its width is 1.88 inches, which should help confirm if it fits your space.
Question by: Ray P on Feb 18, 2026, 6:53 PM
flow rate on this valve is listed at 80 liters per minute -- is that enough to run a machine tool setup without bogging down?
Answer by: Customer Support on Feb 20, 2026, 6:11 AM
For most machine tool applications, 80 liters per minute is solid. That flow capacity puts it well within range for standard machining centers and tooling circuits that don't require extreme volume. The valve is specifically listed for machine tool use, so it's been sized with those demands in mind. As long as your system isn't pulling more than that peak flow, you shouldn't run into performance issues under normal operating conditions.
