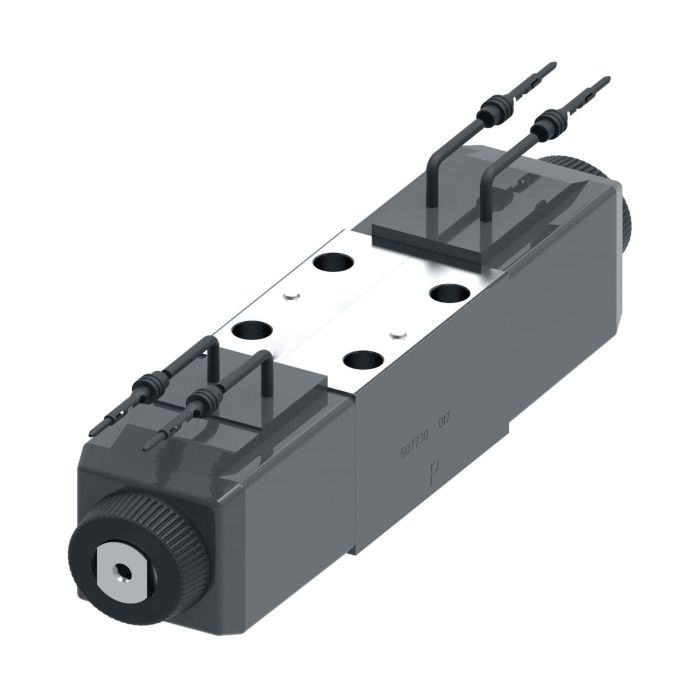

main product photo

DANFOSS / EATON DG4V-3-33C-M-KUP7-D2-G7-60

Ask A Question

Description & Features

This Vickers by Danfoss/Eaton DG4V-3-33C-M-KUP7-D2-G7-60 directional control valve is a three- or four-way valve designed for easy mounting on industry-standard surfaces. With thousands of models available, this valve is designed to suit a wide variety of applications.

Featuring a Buna-N seal material, this directional control valve is suitable for applications such as die casting and foundry, machine tools, marine/offshore, presses, primary metal, paper, test equipment and simulation, and turbine control (wind, steam, and water). It has a flow rate of 80 liters per minute and a wattage of 30, with a product width of 1.88 inches.

SKU: 02-402641

Supplier Part Number (MPN): 02-402641

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Body Material
Iron
Color
Gray
Design
60 Series
Dimensions
8.66 in L x 1.88 in W x 3.42 in H
Electrical Connection
Packard Connector Pin (Male)
Enclosure Type
IP65
Indicator Light
Without Indicator Light
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
1
Performance
High
Seal Material
FKM
Series
DG4V-3 60 Series
Softgoods Material
FKM
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 33
Spring Arrangement
Spring Centered
Surge Suppressor Damper
With Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (1)

Question by: Danny R on Jan 4, 2026, 4:36 PM
flow rate on this valve is listed at 80 LPM, that gonna hold up running it on press equipment or is that more of a ceiling you don't wanna push?
Answer by: Customer Support on Jan 6, 2026, 6:45 AM
80 liters per minute is the rated flow for this valve, and press applications are actually one of the listed uses it's built for. That said, 80 LPM is the stated rating, so running it right at that threshold continuously isn't something you'd want to make a habit of. Keep your system demand reasonably below that figure and you should be in good shape for press work.
