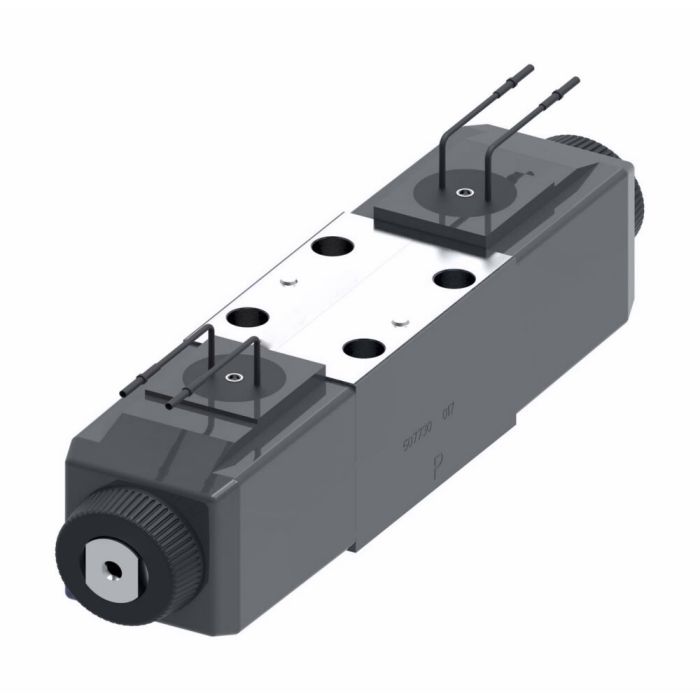

main product photo

DANFOSS / EATON DG4V-3-2C-M-KU-G7-60-EN457-P13

Ask A Question

Description & Features

Ideal for demanding applications such as die casting, marine, and turbine control, the Eaton DG4V-3-2C-M-KU-G7-60-EN457-P13 Directional Control Valve offers robust performance and reliability. Designed with a three- or four-way directional control, this valve seamlessly integrates into machine tools and simulation test equipment. It supports a flow rate of up to 80 liters per minute, ensuring efficient operation across various industrial settings.

Constructed with durable Buna-N seal material, the valve promises long-lasting performance even in harsh environments. The compact design allows for easy mounting on industry-standard surfaces, accommodating a wide range of installation requirements. Powered at 30 watts, this single-stage valve from the Vickers sub-brand by Eaton is engineered to meet diverse operational needs.

SKU: 02-402712

Supplier Part Number (MPN): 02-402712

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Body Material
Iron
Color
Gray
Design
60 Series
Dimensions
8.66 in L x 1.88 in W x 3.42 in H
Electrical Connection
Top Exit Flying Leads
Enclosure Type
IP65
Indicator Light
Without Indicator Light
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
1
Performance
High
Seal Material
FKM
Segment Code
B
Series
DG4V-3 60 Series
Softgoods Material
FKM
Special Features
Coil Lead Length 457.2 mm
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 2
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Similar Products

Model Number Orifice Size Price Action
DANFOSS / EATON DG4V-3-6C-M-SP1-G7-60-EN450-P10

02-402752

Product Questions & Answers (1)

Question by: Peggy M on Nov 27, 2025, 4:24 PM
Reckon this valve could handle the kind of work you see in a die casting operation?
Answer by: Customer Support on Nov 28, 2025, 9:44 PM
Application-wise, yes, this Eaton DG4V valve is well-suited for die casting and foundry work, among others like marine, machine tool, and turbine control applications.
