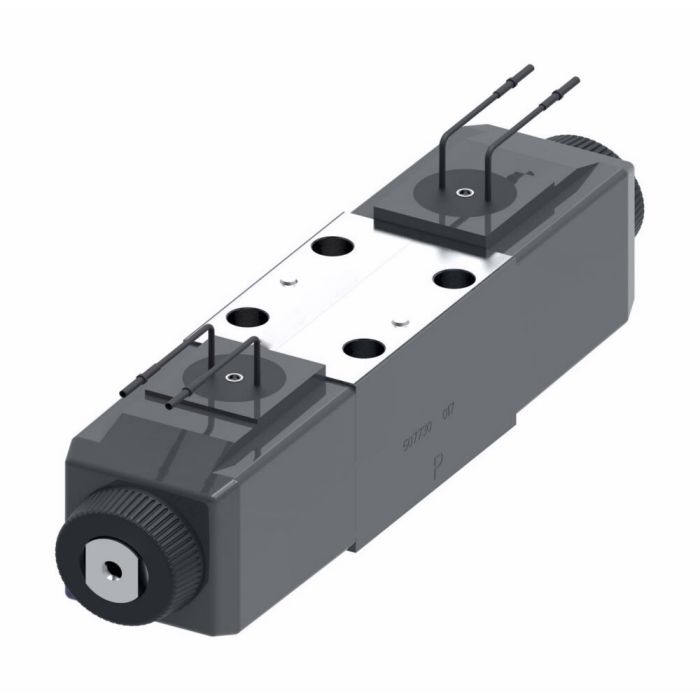

main product photo

DANFOSS / EATON DG4V-3-6C-M-KU-H7-60-EN541

Ask A Question

Description & Features

The DANFOSS / EATON DG4V-3-6C-M-KU-H7-60-EN541 is a Vickers by Danfoss Power Solutions single stage directional control valve. This three- or four-way valve is easily mounted on industry-standard surfaces for applications in die casting and foundry, machine tools, marine/offshore, presses, primary metal, paper, test equipment and simulation, and turbine control (wind, steam, water).

This directional control valve offers a flow rate of 80 liters per minute and utilizes Buna-N seals. With a width of 1.88 inches and a wattage of 30, the DANFOSS / EATON DG4V-3-6C-M-KU-H7-60-EN541 is designed to suit a multitude of applications.

SKU: 02-402750

Supplier Part Number (MPN): 02-402750

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Body Material
Iron
Color
Gray
Design
60 Series
Dimensions
8.66 in L x 1.88 in W x 3.42 in H
Electrical Connection
Top Exit Flying Leads
Enclosure Type
IP65
Indicator Light
Without Indicator Light
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
1
Performance
High
Seal Material
FKM
Segment Code
C
Series
DG4V-3 60 Series
Softgoods Material
FKM
Special Features
DC with 457.2 mm Long Top Exit Flying Lead Coils and Deutsch Socket Pins (Female)
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 6
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Question by: Patty B on May 10, 2025, 12:09 PM
Y'all got a lead time on this thing?
Answer by: Customer Support on May 11, 2025, 4:16 PM
This Danfoss/Eaton directional control valve typically ships within 70 days.
Question by: Denise S on Mar 23, 2026, 8:01 PM
what all can this valve be used for? trying to figure out if it fits our setup in a press application
Answer by: Customer Support on Mar 25, 2026, 5:44 PM
Press applications are actually one of the listed uses for this valve, so you're in the right place. It also covers machine tools, die casting and foundry work, marine and offshore setups, primary metal, paper, test equipment and simulation, and turbine control including wind, steam, and water. It's a pretty broad-use valve, which is part of why there are so many configurations available in the DG4V-3 lineup.
