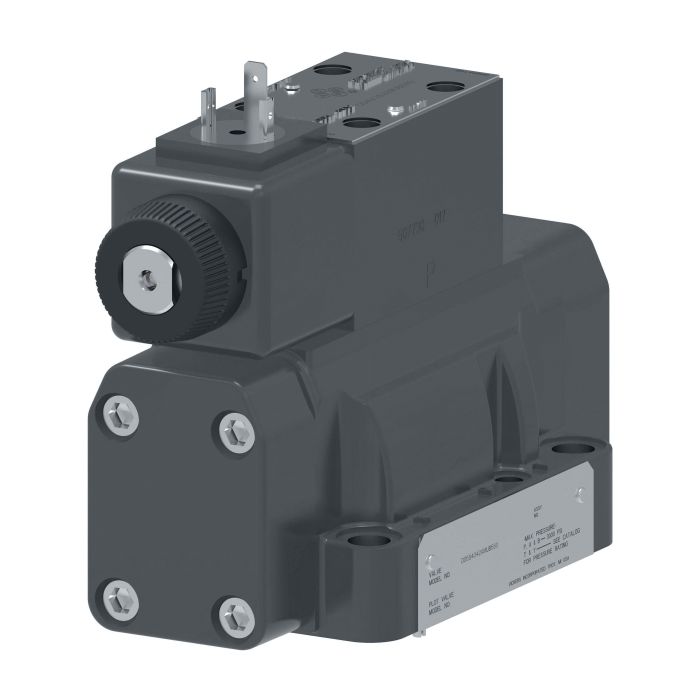

DANFOSS / EATON DG5S4-040A-M-U-H7-70

Description & Features

This Vickers by Danfoss / Eaton DG5S4-04 70 Design Directional Control Valve is a two-stage valve suitable for applications in die casting, foundry, machine tools, marine/offshore, presses, primary metal, paper, test equipment, simulation, and turbine control (wind, steam, water).

Features include three- or four-way directional control and easy mounting on industry-standard surfaces. The valve has a flow rate of 94 liters per minute and utilizes Buna-N seals. This DANFOSS / EATON DG5S4-040A-M-U-H7-70 valve has a wattage of 30 and a product width of 3.5 inches.

SKU: 02-402760

Supplier Part Number (MPN): 02-402760

Specifications

Actuator Type Pilot Operated, Solenoid	Body Material Iron	Design 70 Series	Dimensions 8.19 in L x 3.5 in W x 6.36 in H	Domestic/Import Domestic	Electrical Connection ISO 4400 (DIN 43650) Connector	Enclosure Type IP65	Ext Pilot Pressure Internal	Indicator Light Without Indicator Light	Int Pilot Drain External	Language English	Manual Override Plain	Media Petroleum Oil	Nominal Size #04	Number of Ports/Ways 4-Port	Number of Stages 2	Performance High-Performance	Seal Material Buna-N	Series DG5S4-04 70 Series	Softgoods Material Nitrile	Spool Position Monitor Without Spool Position Monitor	Spool Type Spool 0	Spring Arrangement Spring Offset	Surge Suppressor Damper Without Surge Suppressor Damper	Valve Mount Type Subplate/Manifold

Product Questions & Answers (2)

Question by: Wayne M on Nov 1, 2025, 5:07 PM

What kind of machines or systems would this valve typically be used in?

Answer by: Customer Support on Nov 3, 2025, 6:43 AM

Use-case-first. This directional control valve shines in applications like die casting, machine tools, marine/offshore equipment, presses, and even turbine control for wind, steam, and water setups.

Question by: Hugh R on Sep 24, 2025, 12:01 PM

flow rate on this valve is listed at 94 liters per minute, that enough for press applications or is it gonna be cutting it close?

Answer by: Customer Support on Sep 25, 2025, 5:01 PM

For press work, 94 liters per minute is a solid flow capacity and falls well within what these two-stage directional valves are built to handle. Press applications are actually one of the listed uses for this valve, so you're not pushing it into territory it wasn't meant for. The Buna-N seals hold up well in typical hydraulic fluid environments, and the 30-watt coil keeps power draw reasonable on the solenoid side. As long as your system's pressure and flow demands line up with that 94 LPM rating, you should be in good shape.
