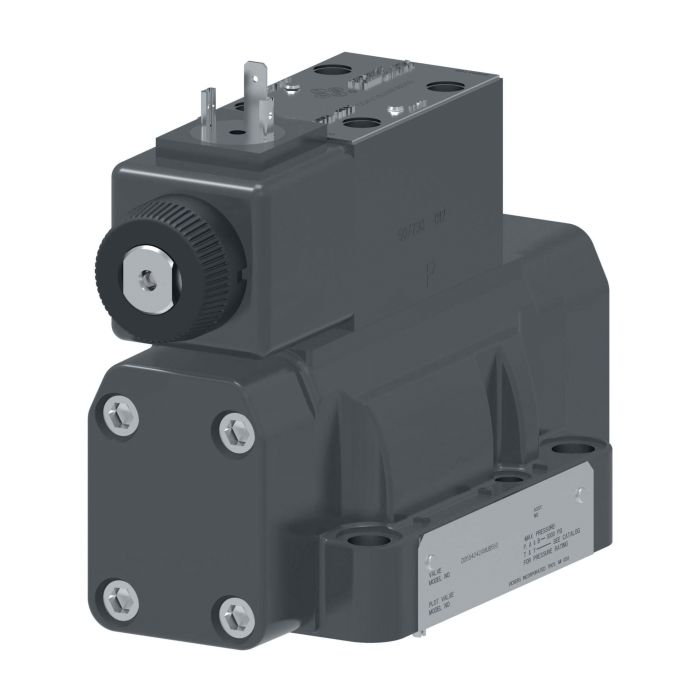

DANFOSS / EATON F3-DG5S4-042C-T-K-M-FW-H7-70

Description & Features

Designed for demanding industrial hydraulic circuits, the Danfoss / Eaton F3-DG5S4-042C-T-K-M-FW-H7-70 is a two-stage directional control valve from the Vickers product line, capable of handling flow rates up to 94 litres per minute. The valve supports three- or four-way directional control and mounts on industry-standard surfaces, making it compatible with a broad range of hydraulic system configurations.

Fitted with Nitrile seals and rated at 30 watts, this valve is suited to a wide range of industrial environments. Documented applications include machine tool, press, primary metal processing, die casting and foundry, marine and offshore, paper, test equipment and simulation, and turbine control, covering wind, steam, and water turbine systems. The model range offers thousands of configuration variants to meet varied application requirements.

SKU: 02-402766

Supplier Part Number (MPN): 02-402766

Specifications

Actuator Type Pilot Operated, Solenoid	Body Material Iron	Design 70 Series	Dimensions 9.58 in L x 3.5 in W x 6.51 in H	Domestic/Import Domestic	Electrical Connection 1/2 in NPT Housing Flying Leads	Enclosure Type IP65	Ext Pilot Pressure Internal	Indicator Light Without Indicator Light	Int Pilot Drain Internal	Language English	Manual Override Plain	Media Petroleum Oil	Nominal Size #04	Number of Ports/Ways 4-Port	Number of Stages 2	Performance High-Performance	Seal Material FKM	Series DG5S4-04 70 Series	Softgoods Material FKM	Spool Position Monitor Without Spool Position Monitor	Spool Type Spool 2	Spring Arrangement Spring Centered	Surge Suppressor Damper Without Surge Suppressor Damper	Valve Mount Type Subplate/Manifold

Product Questions & Answers (2)

Question by: Carl G on Jul 23, 2025, 7:29 PM

Flow rate on this one says 94 litres per minute, is that enough for a press application, or are these typically used in lighter-duty setups?

Answer by: Customer Support on Jul 25, 2025, 6:08 AM

Press applications are actually one of the documented uses for this valve, so 94 litres per minute is right in the wheelhouse for that kind of work. It handles three- or four-way directional control, which is exactly what most press circuits need to manage cylinder direction and sequencing. The Nitrile seals hold up well in the fluid types common to industrial press environments too, so you're not looking at a mismatch there.

Question by: Ricky A on Apr 7, 2026, 8:08 PM

What kind of applications does this Eaton Vickers valve work with?

Answer by: Customer Support on Apr 9, 2026, 6:59 AM

This directional control valve is documented for use in machine tools, presses, primary metal processing, die casting and foundries, marine and offshore applications, paper mills, test equipment, simulation setups, and turbine control systems using wind, steam, or water.
