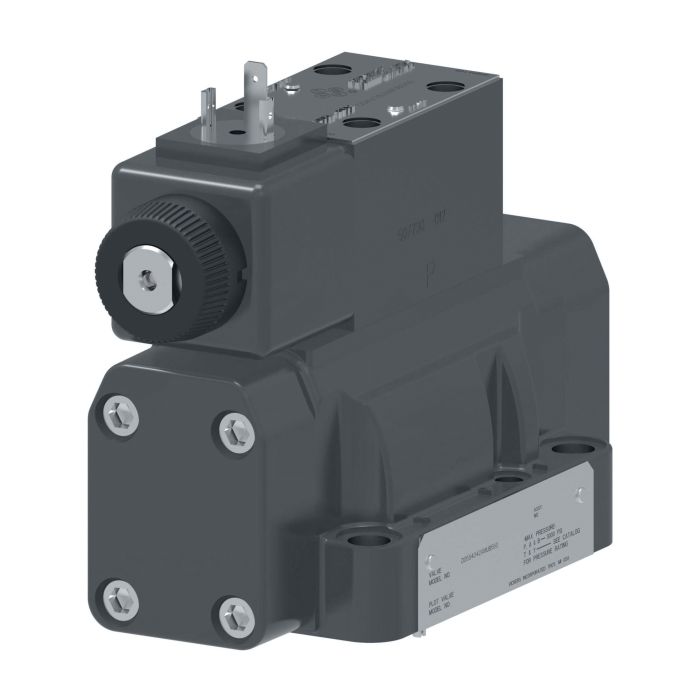

DANFOSS / EATON DG5S4-042C-M-FW-H7-70

Description & Features

Designed for high-performance applications, the Danfoss / Eaton DG5S4-042C-M-FW-H7-70 is ideal for industries such as die casting, marine/offshore, and turbine control. This directional control valve features versatile three- or four-way configurations, ensuring adaptability across a wide range of industrial environments. Its flow rate of 94 liters per minute supports efficient fluid management, making it a reliable choice for machine tools, presses, and primary metal use.

With a robust design, the DG5S4-042C-M-FW-H7-70 is easily mountable on industry-standard surfaces, allowing for straightforward integration into existing systems. The valve's seal is made from durable Buna-N material, enhancing its longevity and resistance to wear. Backed by the trusted Vickers sub-brand, this product ensures quality and reliability for demanding applications.

SKU: 02-402776

Supplier Part Number (MPN): 02-402776

Specifications

Actuator Type Pilot Operated, Solenoid	Body Material Iron	Design 70 Series	Dimensions 9.58 in L x 3.5 in W x 6.51 in H	Domestic/Import Domestic	Electrical Connection 1/2 in NPT Housing Flying Leads	Enclosure Type IP65	Ext Pilot Pressure Internal	Indicator Light Without Indicator Light	Int Pilot Drain External	Language English	Manual Override Plain	Media Petroleum Oil	Nominal Size #04	Number of Ports/Ways 4-Port	Number of Stages 2	Performance High-Performance	Seal Material Buna-N	Series DG5S4-04 70 Series	Softgoods Material Nitrile	Spool Position Monitor Without Spool Position Monitor	Spool Type Spool 2	Spring Arrangement Spring Centered	Surge Suppressor Damper Without Surge Suppressor Damper	Valve Mount Type Subplate/Manifold

Product Questions & Answers (1)

Question by: Rex J on Feb 22, 2026, 3:51 PM

Will this bolt right onto a standard mounting surface without any fuss?

Answer by: Customer Support on Feb 24, 2026, 3:05 PM

Easily mountable on industry-standard surfaces, this directional control valve simplifies integration into existing systems.
