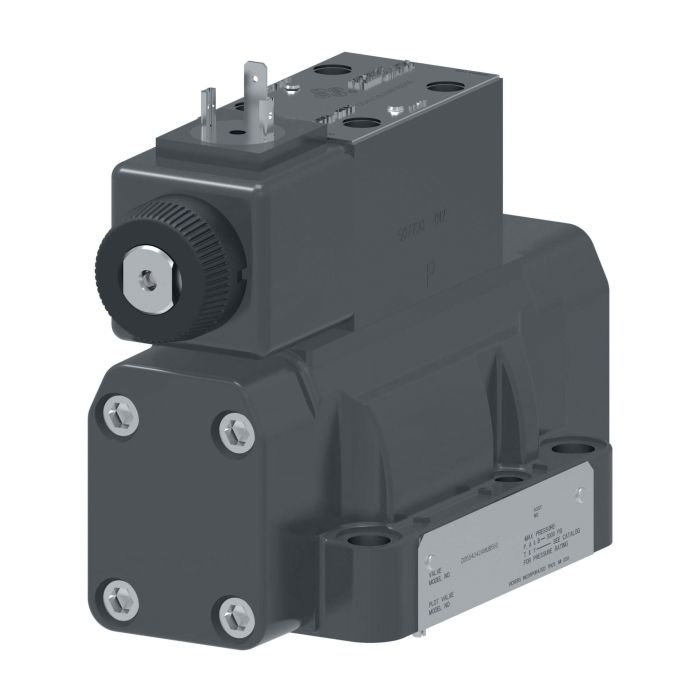

DANFOSS / EATON DG5S4-046C-H-X-E-T-M-U-H7-70

Description & Features

This Vickers by Danfoss / Eaton DG5S4-04 two-stage directional control valve offers three- or four-way directional control, and is easily mountable on industry-standard surfaces. Designed for a flow rate of 94 litres per minute, this valve is suitable for applications such as die casting and foundry work, machine tools, marine and offshore environments, presses, primary metal and paper processing, test equipment and simulation, and turbine control (including wind, steam, and water).

This DANFOSS / EATON DG5S4-046C-H-X-E-T-M-U-H7-70 valve features a Buna-N seal material and operates at 30 watts. Its compact design has a width of 3.5 inches.

SKU: 02-402777

Supplier Part Number (MPN): 02-402777

Specifications

Actuator Type Pilot Operated, Solenoid	Body Material Iron	Design 70 Series	Dimensions 9.58 in L x 3.5 in W x 6.36 in H	Domestic/Import Domestic	Electrical Connection ISO 4400 (DIN 43650) Connector	Enclosure Type IP65	Energy Time X to Fast Response	Ext Pilot Pressure External	Indicator Light Without Indicator Light	Int Pilot Drain Internal	Language English	Manual Override Waterproof	Media Petroleum Oil	Nominal Size #04	Number of Ports/Ways 4-Port	Number of Stages 2	Performance Standard-Performance	Seal Material Buna-N	Series DG5S4-04 70 Series	Softgoods Material Nitrile	Spool Position Monitor Without Spool Position Monitor	Spool Type Spool 6	Spring Arrangement Spring Centered	Surge Suppressor Damper Without Surge Suppressor Damper	Valve Mount Type Subplate/Manifold

Product Questions & Answers (2)

Question by: Dwayne F on Jan 10, 2026, 9:41 PM

Reckon this'll work alright for a die casting setup? That's mostly what we do around here.

Answer by: Customer Support on Jan 12, 2026, 8:23 AM

This DANFOSS / EATON valve is listed as suitable for die casting and foundry work, among other applications like machine tools and presses.

Question by: Rick A on Jul 6, 2025, 9:20 AM

flow rate on this valve is listed at 94 litres per minute, that metric or is there a GPM equivalent I should be thinking about when sizing this for a press application?

Answer by: Customer Support on Jul 8, 2025, 7:13 AM

94 litres per minute works out to roughly 24.8 US gallons per minute. For press work that's a solid mid-range flow capacity, and the valve is specifically listed as suitable for press applications so you're in the right territory with that use case.
