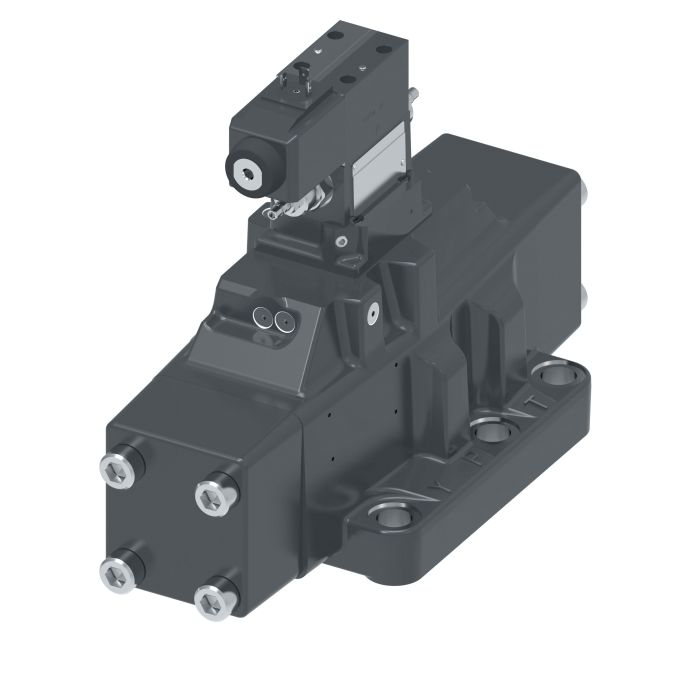

DANFOSS / EATON DG5V-10-S-2A-2-E-M-U-D-11

Ask A Question

Description & Features

Ideal for demanding applications in industries such as die casting, machine tools, and marine use, the Eaton DG5V-10-S-2A-2-E-M-U-D-11 directional control valve delivers reliable performance. With a substantial flow rate of 700 liters per minute, this valve suits high-capacity hydraulic systems. It features a versatile three- or four-way directional control, ensuring adaptability to diverse operational needs. Designed for easy mounting on industry-standard surfaces, this valve is part of the Vickers sub-brand, known for precision and durability.

Constructed with Buna-N seal material, the DG5V-10-S-2A-2-E-M-U-D-11 is durable and resistant to wear, making it suitable for various environments, including primary metal processing and turbine control. The absence of special features indicates a straightforward, robust design focused on reliability. This product is a part of Danfoss Power Solutions, providing a wide range of models to accommodate specific application requirements.

SKU: 02-402842

Supplier Part Number (MPN): 02-402842

Specifications

Actuator Type
Pilot Operated, Solenoid
Body Material
Iron
Design
11 Series
Dimensions
16.5 in L x 7.5 in W x 11.84 in H
Domestic/Import
Domestic
Electrical Connection
ISO 4400 (DIN 43650) Connector
Enclosure Type
IP65
Ext Pilot Pressure
External
Gauge Port Thread
7/16-20 UNF, SAE Thread
Indicator Light
Without Indicator Light
Int Pilot Drain
External
Language
English
Manual Override
Plain
Media
Petroleum Oil
Nominal Size
10
Number of Ports/Ways
4-Port
Number of Stages
2
Performance
Standard-Performance
Port Type
SAE
Seal Material
Buna-N
Series
DG5V-10 11 Series
Softgoods Material
Nitrile
Spool Control
Pilot Choke Adjustment
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 2
Spring Arrangement
Spring Offset End to End
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Stan P on Feb 28, 2026, 9:08 AM
What kind of applications does this valve work for? I'm thinking about using it in a machine tool setup.
Answer by: Customer Support on Mar 2, 2026, 6:36 AM
This Eaton DG5V-10-S-2A-2-E-M-U-D-11 directional control valve is well-suited for applications such as machine tools, die casting, marine environments, presses, primary metal processing, paper mills, test equipment, simulation setups, and turbine control systems.
Question by: Wade J on Apr 12, 2025, 8:11 AM
flow rate on this thing says 700 liters per minute -- is that enough for a high-volume press or die casting setup, or is it really more suited for lighter duty work?
Answer by: Customer Support on Apr 13, 2025, 2:21 PM
For high-volume press and die casting applications, 700 liters per minute is genuinely substantial. That kind of flow capacity puts it well into the range needed for demanding industrial cycles, which is exactly the environment this valve was built around. Die casting and press work are both explicitly listed applications, so you're not pushing it into territory it wasn't meant for.
