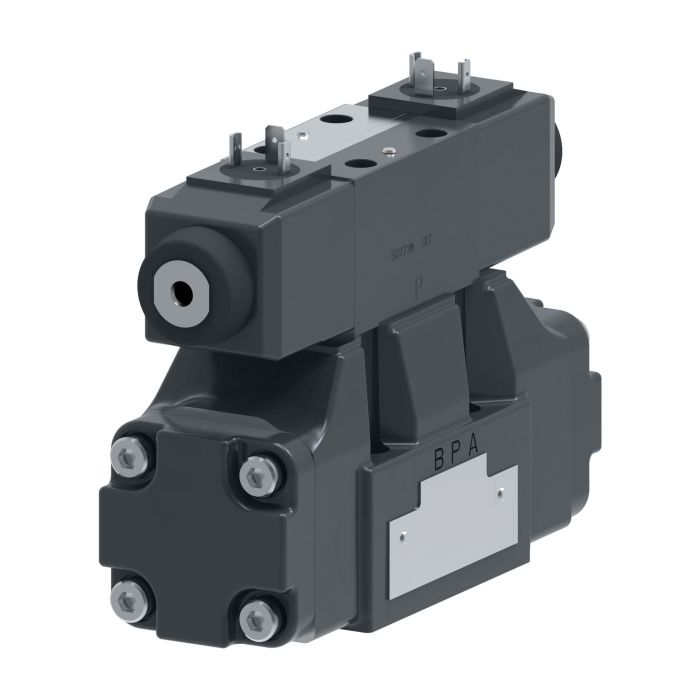

VICKERS DG5V56CTVMUD610HAVANT

Ask A Question

Description & Features

Rated for flow up to 160 litres per minute, the Vickers DG5V56CTVMUD610HAVANT is a two-stage directional control valve designed for demanding industrial hydraulic circuits. It supports three- or four-way directional control and mounts on industry-standard surfaces, simplifying integration into existing machine configurations.

Buna-N seals make this valve well suited to a broad range of hydraulic fluids. Application coverage spans machine tools, presses, die casting and foundry equipment, primary metals processing, marine and offshore systems, test and simulation equipment, and turbine control, including wind, steam, and water turbine installations. This breadth of compatibility reflects the valve's design flexibility across high-demand industrial sectors.

SKU: 02-412947

Supplier Part Number (MPN): 02-412947

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid, Pilot Operated
Design
10 Series
Dimensions
7.87 in L x 2.86 in W x 6.9 in H
Domestic/Import
Domestic
Ext Pilot Pressure
Internal
Indicator Light
Without Indicator Light
Int Pilot Drain
Internal
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
2
Performance
High
Seal Material
Buna-N
Segment Code
C
Series
DG5V-5 10 Series
Solenoid Energizing ID
Solenoid A at Port A/Solenoid B at Port B
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 6
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Question by: Sherry R on May 28, 2025, 8:47 PM
we run a two-stage directional valve on our press line right now and been looking at replacements, does this one handle four-way control or is it limited to three-way?
Answer by: Customer Support on May 30, 2025, 6:10 AM
Both configurations are supported. The DG5V56CTVMUD610HAVANT handles three-way and four-way directional control, so it can slot into either setup depending on how your circuit is laid out. That kind of flexibility is one of the reasons it gets used across press applications in the first place.
Question by: Lance S on Nov 18, 2025, 7:47 PM
If I'm swapping out an old valve, are the mounting surfaces on this Vickers model pretty standard?
Answer by: Customer Support on Nov 20, 2025, 6:51 AM
They are. This valve is designed to mount on industry-standard surfaces, which makes it easy to integrate into existing machine setups.
