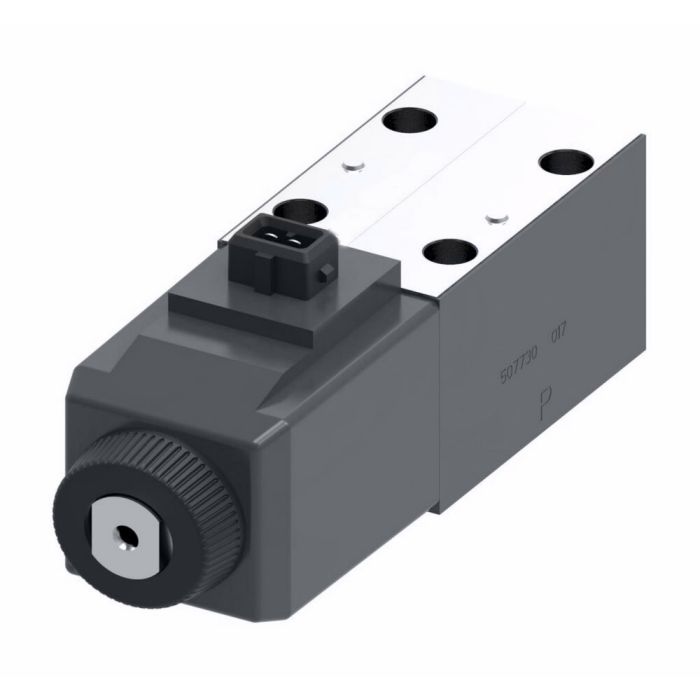

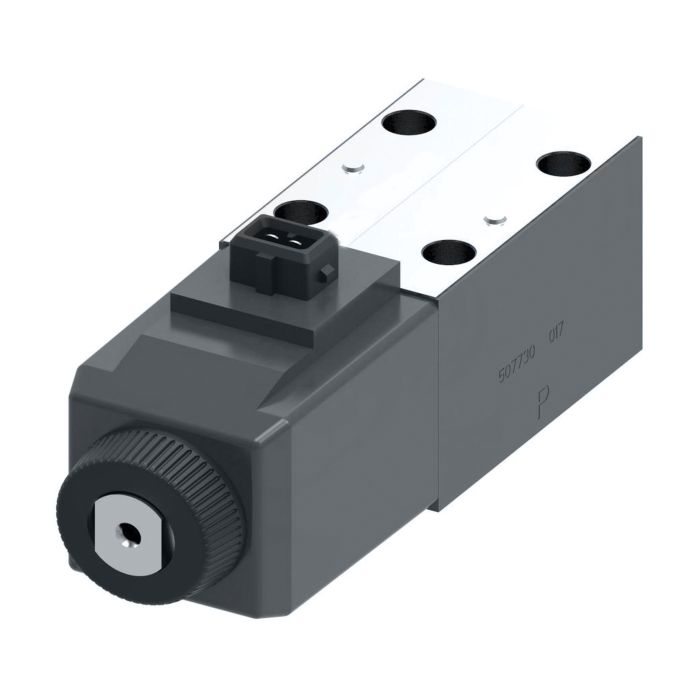

main product photo

VICKERS DG4V-3-42A-VM-KUPD2-DS7- 60-EN38

Ask A Question

Description & Features

Designed for precise control in industrial applications, the Vickers DG4V-3-42A-VM-KUPD2-DS7-60-EN38 directional control valve offers reliable performance across a range of demanding environments. Capable of handling a flow rate of up to 80 liters per minute, this valve is well-suited for use in die casting, machine tools, marine and offshore use, as well as primary metal processing and turbine control systems.

Engineered with a focus on efficiency, this valve features a low leakage/high head loss configuration, with a typical leakage rate of just 5 ml/min/land at 100 bar head loss. This model incorporates Buna-N seals for enhanced durability and compatibility with various hydraulic fluids. The special spools provide increased overlap, ensuring optimal performance under high-pressure conditions. Installation and assembly drawings are available for precise setup, with references to installation DRG No 508190 and ASSY DRG No 698501.

SKU: 02-414379

Supplier Part Number (MPN): 02-414379

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Design
60 Series
Dimensions
5.75 in L x 1.84 in W x 3.57 in H
Domestic/Import
Import
Electrical Connection
Junior Timer (AMP) Connector
Indicator Light
Without Indicator Light
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
1
Performance
High
Seal Material
FKM
Series
DG4V-3 60 Series
Solenoid Energizing ID
Solenoid A at Port A End
Special Features
Low Leakage
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 42
Spring Arrangement
Spring Offset End to End
Surge Suppressor Damper
With Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Question by: Brent W on Mar 27, 2026, 12:14 PM
What kind of leakage numbers should I expect out of this valve running at high pressure?
Answer by: Customer Support on Mar 28, 2026, 7:43 PM
At 100 bar head loss, typical leakage runs about 5 ml per minute per land. That's actually quite low for a directional control valve. The special spools on this unit are built with increased overlap, which is what keeps those numbers tight under high-pressure conditions. If low leakage is a priority for your system, this configuration was put together with that in mind.
Question by: Darryl K on Jun 4, 2025, 4:53 PM
What are some of the applications this valve is good for?
Answer by: Customer Support on Jun 6, 2025, 8:54 AM
It's designed for use in a variety of industrial applications including die casting, machine tools, marine/offshore environments, primary metal processing, and turbine control systems.
