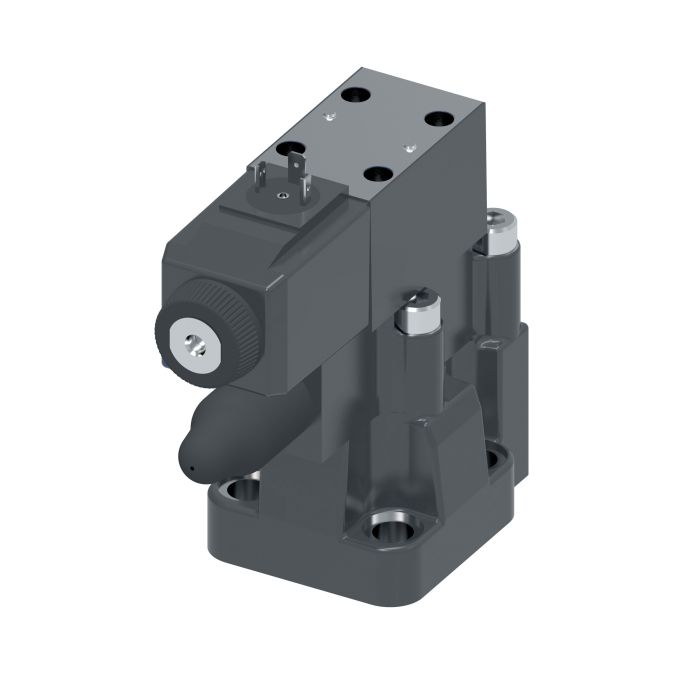

VICKERS CG5V-10GW-B-2-M-U-B6-10

Description & Features

Designed for demanding industrial hydraulic systems, the Vickers CG5V-10GW-B-2-M-U-B6-10 is a pressure control valve rated for flow up to 650 litres per minute. It incorporates a plug-and-play design that simplifies installation and integration into existing hydraulic circuits. Buna-N seals provide reliable fluid compatibility across a broad range of hydraulic media, and moisture-resistant construction supports reliable performance in challenging environments.

This valve supports electrical on/off load switching from solenoid-controlled models, remote parallel control via other pilot valves connected to the vent port, and pressure override characteristics optimized without compromising other performance parameters. Suitable applications include machine tool, press, primary metal and paper processing, die casting and foundry, marine and offshore, turbine control, and test equipment and simulation environments.

SKU: 02-414959

Supplier Part Number (MPN): 02-414959

Specifications

Actuator Type Solenoid	Adjustment Type Screw with Locknut	Body Material Iron	Design 10 Series	Dimensions 4.64 in L x 4.5 in W x 4 in H	Domestic/Import Import	Drain Internal	Leakage Standard	Manual Override Plain	Media Petroleum Oil	Nominal Size 10	Number of Stages 2	Performance Standard	Seal Material Buna-N	Segment Code C	Series CG5 Series	Special Features Electrical On-Off Load from Solenoid Controlled Models, Remote Parallel Control by Other Pilot Valves Connected to "Vent" Port, Pressure Override Optimized without Detriment to Other Performance Parameters	Valve Mount Type Subplate	Voltage Rating 110 VAC at 50 Hz, 120 VAC at 60 Hz

Product Questions & Answers (2)

Question by: Frank B on May 17, 2025, 9:48 PM

I'm wonderin' if this valve will work alright in a die casting operation, you know, with all the heat and whatnot?

Answer by: Customer Support on May 19, 2025, 5:08 PM

Applications like die casting and foundry work are definitely suitable for this Vickers pressure control valve. Its moisture-resistant construction helps it hold up in those tougher environments.

Question by: Shawn B on Apr 20, 2025, 3:41 PM

flow rate on this thing is listed at 650 litres per minute -- that enough for a press application or is that cutting it close?

Answer by: Customer Support on Apr 22, 2025, 8:53 AM

For press applications, 650 litres per minute is a solid capacity. That puts this valve well within range for most industrial press circuits, and press is actually one of the stated application types for this model. Whether it's enough depends on your specific system demand, but the flow rating here isn't a limitation you'd typically run into on standard press setups.
