04 STANDARD NUT

Description & Features

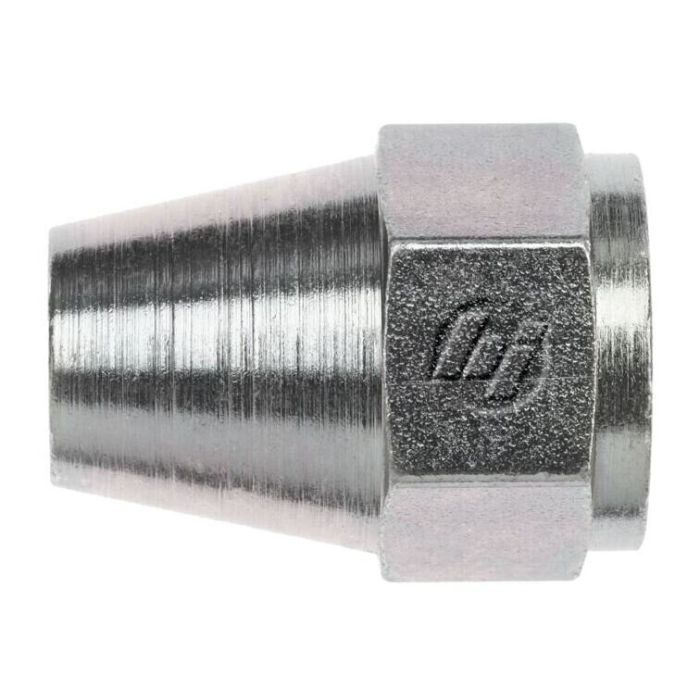

Manufactured by Brennan Industries Inc the 04 JIC Long Tube Nut is made from high-quality straight steel ensuring durability and robust performance. Meeting the specifications of SAE J514 this nut is designed for a tube OD of 1/4 inch and features a thread size of 7/16-20.

The hex head measures 0.562 mm and the overall length is 1.000 mm providing precise and reliable fittings. Suitable for various industrial applications this nut adheres to stringent industry standards.

Supplier Part Number: 0304-04

Note: California residents should be aware of the PROP-65 WARNING associated with this product.

Specifications

Brand BRENNAN	Connection Size 1 1/4 in	Connection Type JIC	Connection Type 1 SAE 37 deg JIC Flare	Dimension Standards SAE J514	Dimensions 1 in L	Finish Trivalent Zinc-Plated	Fitting Type Nut	Hex Size 0.563 in	Material Steel	Material Construction 12L14/C1045 Steel	Series 0304 Series	Thread Size 7/16-20	Tube OD 1/4 in	Tube Outside Diameter 1/4 in

Similar Products

Model Number	Connection Size 1	Thread Size	Hex Size
0304-05	5/16 in	1/2-20	5/8 in
0304-06	3/8 in	9/16-18	11/16 in
0304-08	1/2 in	3/4-16	7/8 in
0304-10	5/8 in	7/8-14	1 x 1 in
0304-12	3/4 in	1-1/16-12	1-1/4
0304-16	1 in	1-5/16-12	1-1/2 in
