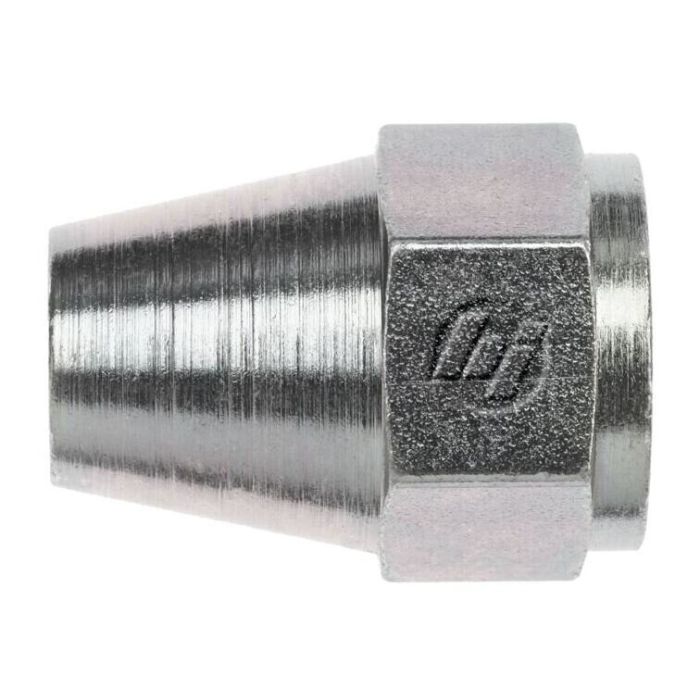

main product photo

06 STANDARD NUT

Ask A Question

Description & Features

The 06 JIC Long Tube Nut is meticulously crafted from straight steel ensuring durability and reliability in various industrial applications. The nut has a thread specification of SAE J514 providing consistency and precision in its fittings. It adheres to the thread type JIC Long Tube Nut with a specification of 9/16-18 making it suitable for tubes with an OD of 3/8.

Its overall length of 1.090 mm and a hex size of 0.687 mm offer a compact yet robust solution for secure and stable connections. The series 0304 ensures compatibility with other products in the same range making it a versatile choice for different projects.

Brand: Brennan Industries Inc

Supplier Part Number: 0304-06

California Residents: PROP-65 WARNING

Specifications

Brand
BRENNAN
Connection Size 1
3/8 in
Connection Type
JIC
Connection Type 1
SAE 37 deg JIC Flare
Dimension Standards
SAE J514
Dimensions
1.09 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Nut
Hex Size
11/16 in
Material
Steel
Material Construction
12L14/C1045 Steel
Series
0304 Series
Thread Size
9/16-18
Tube OD
3/8 in
Tube Outside Diameter
0.38 in

Similar Products

Model Number Connection Size 1 Thread Size Hex Size Price Action
04 STANDARD NUT

0304-04

1/4 in

7/16-20

0.563 in

05 Standard Nut

0304-05

5/16 in

1/2-20

5/8 in

08 STANDARD NUT

0304-08

1/2 in

3/4-16

7/8 in

10 STANDARD NUT

0304-10

5/8 in

7/8-14

1 x 1 in

12 JIC LONG TUBE NUT

0304-12

3/4 in

1-1/16-12

1-1/4

16 JIC LONG TUBE NUT

0304-16

1 in

1-5/16-12

1-1/2 in

Product Questions & Answers (3)

Question by: Johnny H on May 28, 2025, 6:02 PM
Got a 3/8 tube I'm trying to fit up, this the nut I need for that?
Answer by: Customer Support on May 30, 2025, 6:57 AM
For a 3/8 inch OD tube with JIC fittings, yeah, this is the right one. The thread is 9/16-18 per SAE J514, which is the standard spec for that tube size. It's a long tube nut style, so it gives you a solid grip on the tube during assembly. Made from straight steel, so it's built to hold up in typical industrial use.
Question by: Ralph H on Oct 5, 2025, 2:05 PM
trying to match up a tube nut, is this the one for 3/8 tube and 9/16-18 threads?
Answer by: Customer Support on Oct 6, 2025, 3:23 PM
The key callouts match a JIC long tube nut with 9/16-18 threads (SAE J514) intended for 3/8 inch tube OD.
Question by: Todd R on Jun 15, 2025, 3:03 PM
Will this nut work with a standard 3/8" JIC fitting?
Answer by: Customer Support on Jun 16, 2025, 9:12 PM
This 06 JIC long tube nut is made for tubes with a 3/8" outer diameter, fitting within the SAE J514 standard.
