08 STANDARD NUT

Description & Features

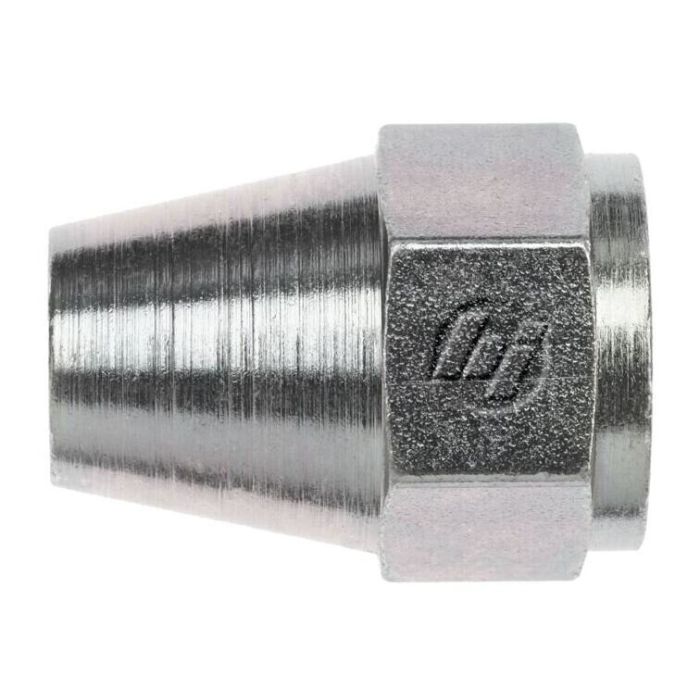

Manufactured from straight steel, this JIC long tube nut is designed for 1/2" OD tube connections and threads at 3/4-16 UNF in conformance with SAE J514. The 08 Standard Nut features a 0.875" hex and an overall length of 1.280", making it well-suited for standard hydraulic line assemblies where a reliable 37-degree flare connection is required.

Part of Brennan Industries' 0304 series, this fitting is a common choice for hydraulic circuits that demand consistent sealing performance at JIC connections. The long nut configuration provides additional thread engagement compared to standard-length alternatives, which can be advantageous in applications where tube alignment or assembly access is a consideration. California residents should note that this product carries a Proposition 65 warning.

SKU: 0304-08

Supplier Part Number (MPN): 0304-08

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 0304-08	Product Weight 0.09 lbs

Product Questions & Answers (3)

Question by: Shane T on Dec 10, 2025, 12:35 PM

got a 1/2 inch tube with a 37 degree flare, is this the right long nut for it?

Answer by: Customer Support on Dec 11, 2025, 3:19 PM

For a 1/2 inch OD tube using a JIC 37 degree flare connection, this nut matches that setup. It is a JIC long tube nut with 3/4-16 UNF threads built to SAE J514.

Question by: Lance B on Mar 7, 2026, 9:41 AM

How long is this JIC nut exactly? I need to make sure it'll fit in the space I have.

Answer by: Customer Support on Mar 9, 2026, 6:09 AM

The overall length of this nut is 1.280 inches. This should help you determine if it will fit your space.

Question by: Larry S on Jul 7, 2025, 6:56 AM

Got a hydraulic line running 1/2" OD tube and need a JIC nut to finish the connection. This the right one for that?

Answer by: Customer Support on Jul 8, 2025, 10:10 AM

For 1/2" OD tube with a JIC 37-degree flare connection, this is the correct fit. It threads at 3/4-16 UNF per SAE J514, which is the standard spec for that tube size in JIC assemblies. The long nut configuration also gives you a bit more thread engagement than a standard-length nut, which can help when you're working in tighter spots or need a little extra stability on the connection.
