10 STANDARD NUT

Description & Features

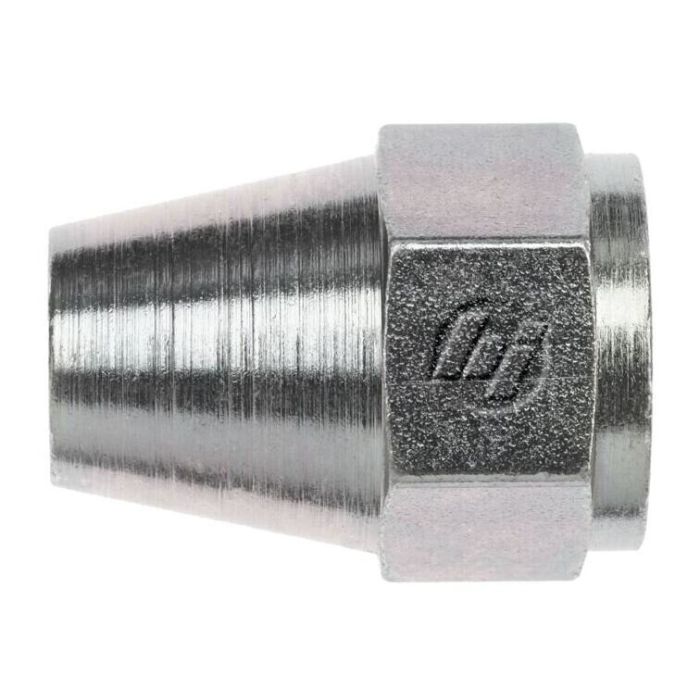

Designed for industrial applications, the 10 JIC Long Tube Nut is built from straight steel, ensuring robust performance and durability. Featuring a 7/8-14 thread size, this nut is compatible with a 5/8 tube outer diameter, adhering to the SAE J514 standard. With an overall length of 1.480 mm and a hex size of 1.000 mm, it provides a secure and reliable connection in hydraulic systems.

Manufactured by Brennan Industries, this product is part of the 0304 series, making it suitable for a wide range of industrial uses. The 10 Standard Nut is engineered to meet the demands of high-pressure environments, ensuring the longevity and integrity of your hydraulic connections.

SKU: 0304-10

Supplier Part Number (MPN): 0304-10

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 0304-10	Product Weight 0.12 lbs

Product Questions & Answers (3)

Question by: Ronnie C on Apr 17, 2025, 5:25 PM

got a 5/8 tube line, is this the right nut for it or am i off a size

Answer by: Customer Support on Apr 19, 2025, 7:26 AM

The key callouts are tube OD and thread. This nut is sized for 5/8 tube OD and uses a 7/8-14 JIC long tube nut thread per SAE J514, so it matches a 5/8 tube setup that takes that JIC thread.

Question by: Norm L on Oct 29, 2025, 8:09 AM

what thread size does this nut run and will it work on a 5/8 tube line?

Answer by: Customer Support on Oct 30, 2025, 10:23 AM

The thread size is 7/8-14, and yes it's built specifically for a 5/8 inch outer diameter tube. It follows the SAE J514 standard, so as long as your fitting setup matches that spec, this nut should seat and seal the way you need it to.

Question by: Brett K on Sep 3, 2025, 1:26 PM

What size tubing does this nut fit?

Answer by: Customer Support on Sep 4, 2025, 7:18 PM

This nut is designed to work with 5/8" outer diameter tubing, according to the SAE J514 standard.
