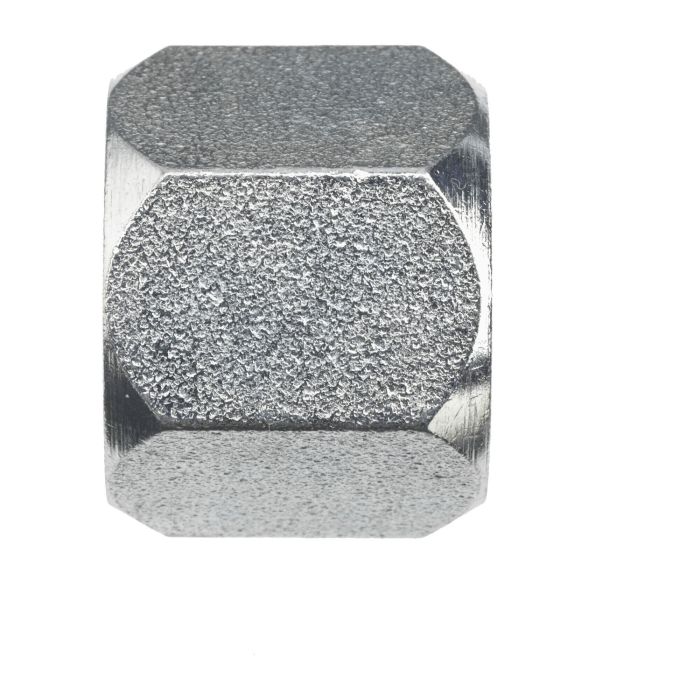

05 JIC CAP NUT

Description & Features

The 05 JIC Cap Nut from Brennan Industries Inc is designed to meet SAE J514 specifications ensuring reliability and durability in demanding environments.

With a maximum dynamic pressure rating of 6 000 psi this cap nut provides excellent performance under high-pressure conditions. It features a female JIC SAE 37-degree flare thread type making it suitable for various industrial applications.

Constructed from high-quality straight steel the 05 JIC Cap Nut boasts a C Hex measurement of 0.625 mm and an overall length of 0.610 mm. Its thread size fits a tube OD of 5/16 ensuring a secure and precise fit.

This product is part of the 0304-C series and comes with a cubic inch space of 0.238 making it a compact and efficient choice for professional use.

Supplier Part Number: 0304-C-05

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 0304-C-05	Product Weight 0.04 lbs

Product Questions & Answers (1)

Question by: Randy M on Aug 12, 2025, 6:34 PM

What's the max pressure this cap nut can hold before it starts giving out?

Answer by: Customer Support on Aug 14, 2025, 4:49 PM

Rated at 6,000 psi dynamic pressure, so it holds up well in most high-pressure hydraulic lines you'd run into on the job. That rating follows SAE J514 spec, which is a widely used standard for JIC fittings. As long as you're staying within that pressure range, it should serve you just fine.
